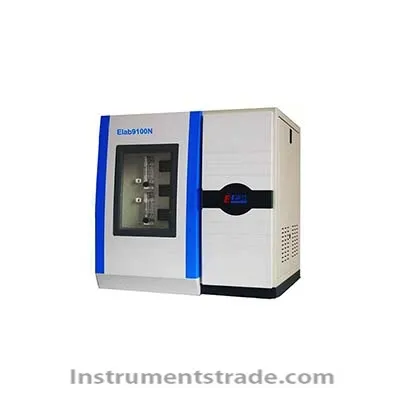

Elab9100N TN elemental analyzer Description:
Elab9100N TN elemental analyzer is an independent company research , development and production of products. There has been six national patents, invented the world's first use of the determination of all forms ( all boiling range ) device samples , the detector sensitivity and ultra trace determination of sample systems injection mode a good reproducibility and Determination of stability so that China's total nitrogen level for the first time at the forefront of the world. Features :
1. Determination of Volatile do not replace the liquid quartz pyrolysis tube and injector solid samples can be determined immediately , is the world's only able to do using only one injector device , without adding or replacing any hardware can be measured gases, liquids ( containing volatile liquids ) , total nitrogen content in solid samples of the product ;
2. Determination of good reproducibility and stability μg / l concentration of the sample ;
3. wide linear range : 0.01mg / L-50000 mg / L;
The modular design was such that the instrument can be used as a combination of the two elements of the analyzer , such as: total sulfur analyzer TN (Elab9100SN) and so on . Technical parameters:
Determination of elements : nitrogen
Detection: Chemiluminescence Detector
Measuring range : 0.01mg / kg-50000mg / kg
Gas Requirements : Oxygen : ≥99.995%; Argon : ≥99.996%
Injection volume : Liquid : 1-40μl; gas : 1-20ml; solid : 0.1-10mg;
Power Requirements : 220VAC ± 10V, 50Hz ± 0.5 Hz, 1500W
The Elab9100N Total Nitrogen Element Analyzer is used to determine the total nitrogen content of gases, liquids (including volatile liquids), and solid samples.
