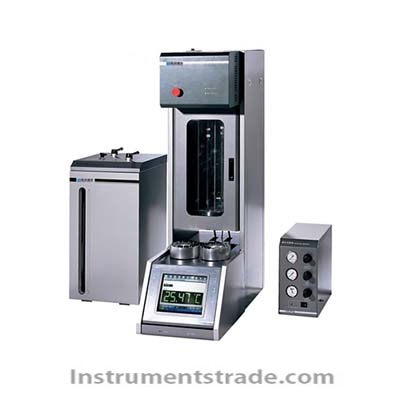

EKV110 Automatic Kinematic Viscosity Tester
Product Introduction
The EKV110 Automatic Kinematic Viscosity Tester is designed, manufactured and inspected in accordance with GB/T 265, ISO 3104 and ASTM D445. It is designed for measuring the kinematic viscosity of transparent and opaque liquid petroleum products, including crude oil, light and heavy fuel oils, lubricating oils and additives.
The EKV110 provides a highly automated testing workflow. After placing samples and entering sample numbers and positions, the instrument can automatically perform sample loading, sampling, temperature conditioning, viscosity measurement, cleaning and drying without continuous manual operation.
With an industrial computer and microcontroller-based control system, dual viscometers, automatic sample handling and integrated cleaning and drying, the EKV110 automatic kinematic viscosity tester is suitable for petroleum laboratories, oil refineries, quality-control laboratories and research institutions.

Performance Features
•  Multiple standards: Complies with GB/T 265, ISO 3104 and ASTM D445.
•  Fully automatic operation: Automatically performs sampling, temperature conditioning, viscosity testing, cleaning and drying.
•  24-sample capacity: Two sample trays with 12 positions each allow up to 24 samples to be loaded at once.
• Dual-viscometer design: Two viscometers operate in one constant-temperature bath.
•  Wide measurement range: Multiple selectable ranges are available, such as 0.5–500 cSt and 10–1000 cSt.
• Multiple detection technologies: Supports both photoelectric and thermistor detection methods.
•  High timing accuracy: Detection time resolution reaches 0.01 s.
• Precise temperature control: PT100 temperature sensor and constant-temperature bath provide stability up to ±0.01°C.
•  Automatic sample identification: Automatically locates samples according to the programmed sample cup number.
•  Automatic vacuum sampling: Samples are automatically drawn into the viscometer using negative pressure.
•  Automatic repeat testing: Each sample can be tested 2–4 times, with the system automatically calculating the average kinematic viscosity.
• Automatic cleaning and drying: Configurable cleaning cycles and compressed-air drying reduce manual intervention.
•  Large data storage: Industrial computer system provides convenient test data management.
•  Network connectivity: RS-232, USB and RJ-45 interfaces support LIMS and local network integration.
•  Wireless connectivity: Equipped with Wi-Fi and Bluetooth.
• Intelligent protection: Provides automatic diagnosis, fault alarms, overheating protection and power-failure protection.

Working Principle
The EKV110 kinematic viscosity tester determines kinematic viscosity by measuring the time required for a liquid sample to flow through a calibrated viscometer under controlled temperature conditions.
First, the sample is automatically selected from one of the two 12-position sample trays. The instrument uses vacuum negative pressure to draw the sample into the viscometer. The sample is then immersed in the constant-temperature bath and maintained at the preset temperature for the specified conditioning time.
After temperature stabilization, the instrument opens the viscometer to atmospheric pressure, allowing the sample to flow freely under gravity. The detection system automatically identifies the liquid level and records the flow time. Depending on the selected configuration, liquid movement can be detected using photoelectric detection or thermistor detection, with timing accuracy of 0.01 s.
Each sample can be tested 2–4 times. The system calculates the kinematic viscosity from the measured flow time and calibration coefficient, then automatically calculates the average result.
After testing, the instrument automatically introduces cleaning agent, performs the programmed cleaning cycles and uses compressed air to dry the viscometer before proceeding to the next sample.

Automatic Testing Workflow
Sample Loading → Automatic Sample Positioning → Automatic Sampling → Constant-Temperature Conditioning → Automatic Viscosity Measurement → Automatic Cleaning → Automatic Drying → Next Sample
The industrial computer continuously monitors each testing stage and provides real-time status display, automatic diagnosis and fault alarms.

Technical Parameters

Parameter	Specification
Applicable Standards	GB/T 265, ISO 3104, ASTM D445
Application	Kinematic viscosity of transparent and opaque petroleum products
Sample Capacity	2 × 12 samples
Power Supply	AC 220 V, 50 Hz
Total Power	2000 W
Detection Method	Photoelectric detection / Thermistor detection
Timing Accuracy	0.01 s
Cooling Method	Anhydrous ethanol as cooling medium
Temperature Sensor	PT100
Operating Temperature	20–100°C
Measurement Range	0.5–500 cSt; 10–1000 cSt; or 100–2000 cSt, depending on configuration
Storage Temperature	-20–50°C
Constant-Temperature Bath Range	20–100°C
Bath Temperature Stability	±0.01°C
Temperature Resolution	0.01°C
Bath Medium	Silicone resin fluid
Display	10.4-inch color LCD
Display Resolution	800 × 600
Input	External keyboard and touch pen
Communication Interfaces	RS-232, USB, RJ-45
Wireless Communication	Wi-Fi, Bluetooth
Dimensions	400 × 900 × 1300 mm
Weight	120 kg

Applications
The EKV110 automatic kinematic viscosity tester is suitable for:
•  Crude oil kinematic viscosity testing
•  Fuel oil viscosity testing
•  Light and heavy fuel oil analysis
•  Lubricating oil testing
•  Petroleum additive evaluation
•  Petroleum refinery laboratories
•  Oil product quality control
•  Chemical industry laboratories
•  Research and development laboratories
•  Inspection and testing institutions
•  LIMS-connected laboratory testing

EKV110 vs. Conventional Manual Kinematic Viscosity Testing

Feature	EKV110 Automatic Kinematic Viscosity Tester	Conventional Manual Viscosity Testing
Operation	Fully automatic	Mainly manual
Sample Capacity	Up to 24 samples	Usually processed individually
Sampling	Automatic vacuum sampling	Manual sampling
Temperature Conditioning	Automatic	Manual monitoring
Flow-Time Measurement	Automatic	Manual observation/timing
Repeat Tests	2–4 automatic tests	Manual repetition
Result Calculation	Automatic averaging	Manual calculation often required
Cleaning	Automatic	Manual
Drying	Automatic compressed-air drying	Manual
Temperature Stability	±0.01°C	Depends on equipment/operator
Data Management	Computerized storage	More manual recording
LIMS Connectivity	RS-232/USB/RJ-45	Usually limited
Continuous Batch Testing	Supported	Lower efficiency

Why Choose EKV110?
The EKV110 automatic kinematic viscosity tester is designed for laboratories that require high-throughput, repeatable and unattended petroleum viscosity testing. Its 24-sample capacity, dual-viscometer configuration, automatic sampling and cleaning system significantly reduce manual intervention.
With compliance with GB/T 265, ISO 3104 and ASTM D445, together with precise 20–100°C temperature control and multiple viscosity detection technologies, the EKV110 provides an efficient solution for routine and research-oriented kinematic viscosity analysis of crude oil, fuel oil, lubricating oil and other petroleum products.

Frequently Asked Questions (FAQ)
1. What standards does the EKV110 comply with?
The EKV110 is designed according to GB/T 265, ISO 3104 and ASTM D445.
2. What samples can the EKV110 test?
It is suitable for transparent and opaque petroleum products, including crude oil, light and heavy fuel oils, lubricating oils and additives.
3. How many samples can be tested in one batch?
The instrument has two sample trays with 12 positions each, allowing up to 24 samples to be loaded for automatic testing.
4. Is the viscosity test fully automatic?
Yes. After loading the samples and setting the sample information, the instrument can automatically perform sample positioning, sampling, temperature conditioning, viscosity measurement, cleaning and drying.
5. What is the operating temperature range?
The constant-temperature bath operates from 20°C to 100°C, with temperature stability of ±0.01°C and resolution of 0.01°C.
6. What is the viscosity measurement range?
Available ranges include 0.5–500 cSt, 10–1000 cSt and 100–2000 cSt, depending on the selected configuration.
7. How does the EKV110 improve measurement reliability?
It uses precise temperature control, calibrated viscometers, automatic timing, repeat testing and automatic averaging. Each sample can be tested 2–4 times according to user settings.
8. Can the EKV110 connect to a laboratory information system?
Yes. The instrument provides RS-232, USB and RJ-45 interfaces and can be connected to a LIMS or local network. Wi-Fi and Bluetooth are also available.
