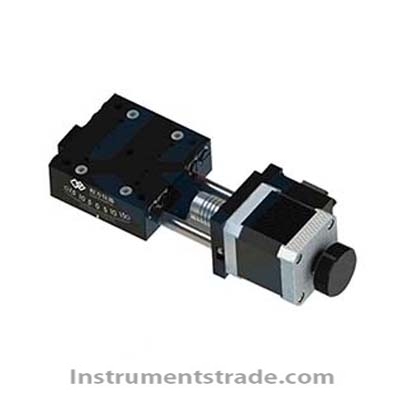

EAT15-1 Motorized Angular Stage
Product Introduction
The EAT15-1 Motorized Angular Stage is a precision motorized rotation and angular positioning stage designed for optical instruments, laboratory automation, precision measurement, and positioning systems.
Equipped with a stepper motor, standard RS232 interface, and 252:1 worm gear drive, the EAT15-1 provides precise ±15° angular adjustment with high positioning accuracy and repeatability. It can be combined with the CHFKZQ series motion controller for automated motion control.
The stage features a horizontal mounting surface, compact aluminum alloy construction, circular ball bearings, and a worm-drive mechanism for smooth, stable, and reliable angular positioning.

Performance Features
•   Motorized precision angular adjustment
Provides an angular range of ±15° for controlled rotational positioning.
•   Stepper motor drive
Standard stepper motor enables programmable and repeatable positioning.
•   RS232 communication
Supports connection to motion controllers for automated positioning applications.
•   High-ratio worm drive
The 252:1 worm gear transmission provides stable motion and precise angular adjustment.
•   Precision circular guide system
Circular ball bearings combined with a circular steel guide provide smooth and reliable movement.
•   Low-noise transmission
High-quality elastic coupling synchronizes the stepper motor and worm shaft while reducing transmission noise.
•   Orthogonal dual-axis capability
Two stages can be paired and stacked with the same rotation center for concentric two-axis angular adjustment.
•   Limit switch protection
Integrated limit switches facilitate positioning and protect the stage from excessive travel.
•   High load capacity
Supports loads up to 15 kg despite its compact 65 × 65 mm platform.

Working Principle
The EAT15-1 Motorized Angular Stage converts the rotational motion of its stepper motor into precise angular movement through a 252:1 worm gear transmission.
When controlled by an RS232-compatible motion controller, the stepper motor receives positioning commands and rotates the worm shaft. The worm gear then drives the angular platform through the required rotation range.
The circular ball-bearing and steel-guide structure provides smooth support during movement, while the high transmission ratio improves positioning stability. Limit switches provide travel protection and assist with positioning.
Two EAT15-1 stages can also be stacked to create a concentric two-axis angular positioning system, making the stage suitable for multi-axis optical alignment and precision positioning.

Technical Parameters

Parameter	Specification
Product Name	EAT15-1 Motorized Angular Stage
Angular Range	±15°
Platform Size	65 × 65 mm
Drive Mechanism	Worm gear and worm shaft
Transmission Ratio	252:1
Motor	42 Stepper Motor
Main Material	Aluminum Alloy
Surface Finish	Black Anodized
Load Capacity	15 kg
Net Weight	9 kg
Resolution	5 μrad (without microstepping); 0.25 μrad (20 microsteps)
Maximum Speed	10°/s
Absolute Accuracy	±9″
Repeatability	±4″
Lost-Step Accuracy	±2″
Backlash	±3″
Interface	Standard RS232
Limit Protection	Limit switches

Application Scenarios
Optical Alignment
Used for precision angular alignment of lenses, mirrors, optical components, and other optical elements.
Laser and Photonics Systems
Suitable for angular positioning and beam alignment in laser laboratories and photonics equipment.
Precision Measurement
Provides controlled angular adjustment for measurement and calibration instruments.
Laboratory Automation
The RS232 interface allows integration with motion controllers for automated positioning and testing systems.
Microscopy and Imaging
Suitable for precise sample or optical component angular adjustment in imaging systems.
Two-Axis Angular Positioning
Two EAT15-1 stages can be stacked for concentric orthogonal rotation, providing flexible two-axis angular adjustment.

EAT15-1 vs Manual Angular Stages

Feature	EAT15-1 Motorized Angular Stage	Conventional Manual Angular Stage
Drive	Stepper motor	Manual
Control	RS232 / Motion Controller	Hand adjustment
Angular Range	±15°	Model dependent
Resolution	Up to 0.25 μrad with 20 microsteps	Typically lower
Repeatability	±4″	Operator dependent
Automation	Supported	Usually unavailable
Two-Axis Configuration	Concentric stacking supported	Requires manual adjustment
Limit Protection	Integrated limit switches	Usually limited
Load Capacity	Up to 15 kg	Model dependent

Frequently Asked Questions (FAQ)
1. What is the EAT15-1 Motorized Angular Stage used for?
It is used for precision angular positioning and alignment in optical, photonics, laboratory automation, measurement, and scientific research applications.
2. What is the angular travel range?
The EAT15-1 provides an angular adjustment range of ±15°.
3. Can the EAT15-1 be controlled automatically?
Yes. The stage is equipped with a standard RS232 interface and can work with the CHFKZQ series motion controller for automated positioning.
4. What type of motor does the EAT15-1 use?
It uses a 42 stepper motor connected to the worm shaft through a high-quality elastic coupling.
5. What is the positioning resolution?
The resolution is 5 μrad without microstepping and can reach 0.25 μrad with 20 microsteps.
6. Can two EAT15-1 stages be combined?
Yes. Two stages can be stacked to form a concentric orthogonal two-axis angular positioning system.
7. What is the maximum load capacity?
The maximum load capacity is 15 kg.
8. Does the stage have travel protection?
Yes. Integrated limit switches help with positioning and protect the stage from excessive travel.
