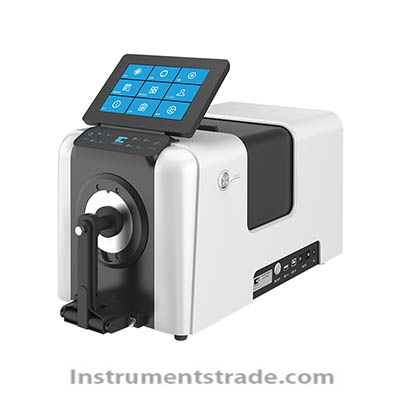

DS-36D benchmark desktop spectrophotometer Introduction: The benchmark desktop spectrophotometer DS-36D series adopts a self-developed differential spectroscopy engine, which increases the light intake by 50% and spectral resolution by 30%; Provide better repeatability, inter station difference, and indication performance; The clarity of the camera has been improved by 350%, and the self-developed brightness calibration algorithm accurately reproduces the color of ultra dark samples; Powerful ColorExpert computer data management software that supports saving both sample data and images simultaneously. The DS-36D series products will play a more significant role in quality control management and color matching in various industries such as paint, plastics, and textiles. Features: 1. Differential spectroscopy engine comprehensively improves measurement performance 2. Dual optical path design improves repeatability accuracy with dE * ab ≤ 0.005 3. Innovative nanoscale resolution grating spectroscopic technology 4. Excellent inter station consistency: dE * ab ≤ 0.08, ultra-high repeatability accuracy: dE * ab ≤ 0.005, ensuring precise data transmission between factories 5. Self developed fluorescence calibration technology 6. High precision automatic calibration 7. Multiple measurement apertures for easy measurement of various shapes of samples 8. Configure high-definition preview camera 9. Support simultaneous saving of sample data and images 10. Provide powerful ColorExpert computer data management software Technical Specifications: Sensor: Differential Spectroscopy Engine Spectral splitting method: concave grating Integral sphere diameter: 152mm Measurement wavelength range: 360nm-780nm Measurement wavelength interval: 10nm Reflectivity measurement range: 0-200%, resolution 0.01% Lighting source: pulsed xenon lamp and LED UV measurement: including UV, 400nm cut-off, 420nm cut-off, 460nm cut-off Measurement time: Single mode<2 seconds Illumination/measurement aperture: Reflection: XLAV Φ25.4mm/Φ30mm； LAVΦ15mm/Φ18mm； MAVΦ8mm/Φ11mm； SAVΦ3mm/Φ6mm Users can customize the caliber and switch between calibers for automatic recognition Transmission: Φ 17mm/Φ 25mm Transmission measurement specifications: Sample height and thickness: Height not limited, thickness ≤ 50mm Standard Observer: 2 ° Standard Observer and 10 ° Standard Observer Observing the light source: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8 Display content: Spectral data, spectrogram, chromaticity data, color difference data, color difference chart, qualified/unqualified judgment, simulated color, color evaluation, haze, liquid chromaticity, color bias Color space: CIE LAB, CIE LUV, LCh, Hunter Lab, Yxy, XYZ, Musell, s-RGB, β xy Color difference formula: Δ E * ab, Δ E * CH, Δ E * uv, Δ E * cmc, Δ E * 94, Δ E * 00, Δ Eab (Hunter), 555 color tone classification Storage space: 8GB Screen size: 7-inch capacitive touch screen Audit Tracking: Yes (as required by FDA and CFDA) Operating System: Android Power supply: DC stabilized power supply Operating temperature and humidity: 5-40 ° C, no condensation below 80% relative humidity (at 35 ° C) Storage temperature and humidity: -20~45 ° C, no condensation below 80% relative humidity (at 35 ° C) Optional accessories: Heating transmission fixture (including control circuit), vertical bracket, pneumatic top rod (including control circuit), small sample clamping accessories, fiber testing box, film fixture, micro transmission fixture, pull rod box, European standard plug, American standard plug Interface: RS-232, USB, USB-B, Bluetooth Camera framing positioning: Ultra clear camera (1400dpi) Automatic calibration: Yes (can significantly improve the long-term repeatability of the instrument) Fluorescence calibration: Yes (can automatically adjust UV intensity, ensure instrument values are highly consistent with other imported instruments when measuring fluorescent materials) Brightness calibration: Yes (using brightness calibration algorithm to accurately reproduce the color of ultra dark samples)
Introduction: The benchmark desktop spectrophotometer DS-36D series adopts a self-developed differential spectroscopy engine, which increases the light intake by 50% and spectral resolution by 30%; Provide better repeatability, inter station difference, and indication performance; The clarity of the camera has been improved by 350%, and the self-developed brightness calibration algorithm accurately reproduces the color of ultra dark samples; Powerful ColorExpert computer data management software that supports saving both sample data and images simultaneously. The DS-36D series products will play a more significant role in quality control management and color matching in various industries such as paint, plastics, and textiles.
