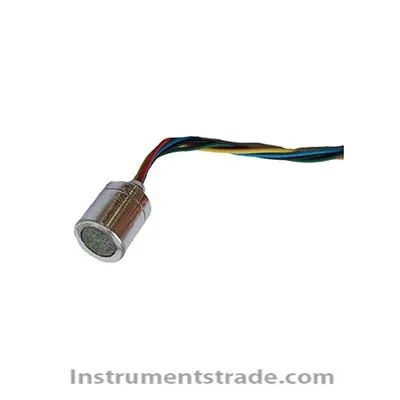

DMKY-2 standard signal miniature pore water pressure sensor

Product ID:CLQTlxlcly053

Price: US$310.00 ~ US$368.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDMKY-2
    Brand NameNANJINGDANMO
    Payment TermsTT,PAYPAL
    DMKY-2 standard signal miniature pore water pressure sensor

    Introduction:
    DMKY series high-precision pore water pressure gauge is suitable for measuring pore water pressure (osmotic pressure) in or around soil, mud, sand and model piles, as well as pore (osmotic) water pressure in dynamic centrifuge model tests. Or static pore water pressure and excess static pore water pressure in rock and soil, good waterproof performance, small size, light weight, and can be reused. It is an effective monitoring device to understand the change of pore water pressure inside the measured structure. The porosimeter adopts a high-precision pressure chip, which can accurately eliminate the influence of temperature change on the instrument.
    Using micro-fabrication and packaging technology, compact structure, good stability, strong and durable.
    Technical parameter:
    Measuring medium: various liquids
    Diameter (mm): 9.5
    Height (mm): 10.5
    Range (MPa): 0.1, 0.2, 0.5, 1.0, 1.5, 2.0, 5.0MPa
    Accuracy: ≤0.3%F•S (Note: F•S is the full-scale output value)
    Output signal: 0.5~4.5V or 0~50mv
    Supply voltage: 5V
    Resolution: 1/4000 of full scale
    Features: Static and dynamic measurement possible
    Frequency Response: Dynamic response frequency up to 50KHz
    Waterproof performance: water pressure resistance
    Overload capacity: 200% full scale
    Operating temperature: -20~85
    Supporting equipment: analog signal voltage acquisition equipment
    Remarks: The size and range can be customized, the minimum diameter can be customized 2.54mm, the structure can be customized

  • Introduction:
    DMKY series high-precision pore water pressure gauge is suitable for measuring pore water pressure (osmotic pressure) in or around soil, mud, sand and model piles, as well as pore (osmotic) water pressure in dynamic centrifuge model tests. Or static pore water pressure and excess static pore water pressure in rock and soil, good waterproof performance, small size, light weight, and can be reused. It is an effective monitoring device to understand the change of pore water pressure inside the measured structure. The porosimeter adopts a high-precision pressure chip, which can accurately eliminate the influence of temperature change on the instrument.
    Using micro-fabrication and packaging technology, compact structure, good stability, strong and durable.
