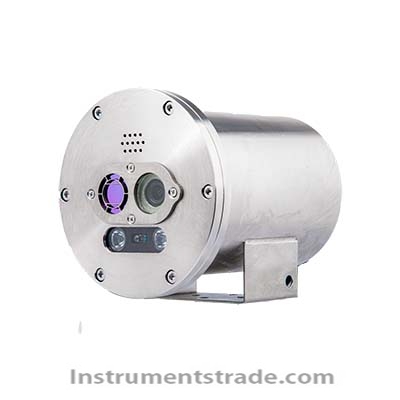

DLD-EXS dual-spectrum explosion-proof thermometer

Product ID：CLWDhwcw052

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberDLD-EXS

Brand NameZJDALI

Payment TermsTT，PAYPAL，Alibaba.com Pay

DLD-EXS dual-spectrum explosion-proof thermometer
Introduction:
The DLD-EXS dual-spectrum explosion-proof thermometer gun features a 256×192/384×288/640×512 pixel uncooled vanadium dioxide detector, with 1920*1080 visible light pixels. It supports image modes such as picture-in-picture and dual-light fusion, and is suitable for temperature measurement applications in petroleum and petrochemical industries, coal mining, solid and hazardous waste management, and hazardous chemical storage.
Features:
1. Precise temperature measurement: 10 points, 10 areas, 3 line temperature measurements; and supports the drawing of irregular temperature measurement boxes
2. Supports 30-meter near-infrared fill light
3. Support for linkage between warning lights and horn voice alarms
4. Supports POE power supply
5. Supports 1-channel hardware alarm input and 1-channel alarm output
6. Supports Modbus RTU/TCP temperature output
7. Explosion-proof grade: EX d IIC T6 GB
Technical Specifications:

model		DLD-EXS206	DLD-EXS313	DLD-EXS625
infrared	detector type	Uncooled vanadium dioxide focal plane micro-thermal type
	pixel	256×192	384×288	640×512
	Pixel spacing	12μm	17μm
	Thermal sensitivity	≤ 0.05℃@F1.0,300K
	wavelength range	7-14μm
	standard lens	6mm	13mm	25mm
	field of view	29.8°×22.3°	28.8°×21.6°	25°×19°
	spatial resolution	2mrad	1.3 mrad	0.68 mrad
	Focus mode	Fixed atherization
visible light	CMOS	1/2.8 inch
	pixel	1920*1080
	lens	4mm
	Near-infrared fill light	Light compensation distance of 30 meters
temperature measurement performance	Temperature measurement range	-20℃~550℃	-20℃~650℃
	Temperature measurement accuracy	±2℃ or ±2% of the reading range, whichever is greater
	Temperature measurement mode	10 movable points, 10 movable areas, 3 movable lines, and support for drawing irregular temperature measurement areas
	Emissivity correction	Adjustable emissivity from 0.01 to 1.0
	temperature unit	Celsius, Fahrenheit
	temperature correction	Distance temperature correction, linear temperature correction
	Original image output	25Hz
alarm function	call the police	High temperature alarm, low temperature alarm, inter-phase temperature difference, and other methods
	Voice broadcast alarm	Support voice broadcast alarm
	Warning light	Support alarm linkage warning light
	Alarm input and output	1 channel alarm output, 1 channel alarm input
operating function	Image adjustment	DDE
	Calibration function	Manual calibration, automatic calibration upon startup; scheduled calibration after normal operation
	picture-in-picture	support
	dual-band optical fusion	support
	Visible light temperature overlay	support
	Image display	14 color palettes to choose from (Iron Red, White Heat, Black Heat, Rainbow, Sunset, Amber, Jade, etc.)
	Storage function	Built-in storage, supporting 12G;
	Plan to record	support
	Character display	Time, date, channel name, and custom channel name
network	Video compression format	H.264
	Agreement	TCP/IP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, DNS, DDNS
	Safety	HTTPS(SSL) login authentication, categorized login authentication, IP address filtering, user access logs, 802.1X authentication method
	Image access protocol	ONVIF, GB28181, RTSP
	temperature output	SDK output, Modbus RTU/TCP protocol output
interface	power interface	DC12V±10%
	network interface	RJ45；POE
	Alarm input	Route 1
	alarm output	Route 1
	serial port	RS485
environment	Operating Temperature	-20℃~+50℃
	Storage temperature	-45℃~ +70℃
	Protection level	IP68
feature	Power consumption	≤3W	≤4W
	Size (mm)	W136×D196×H143mm
	weight	≤3kg
