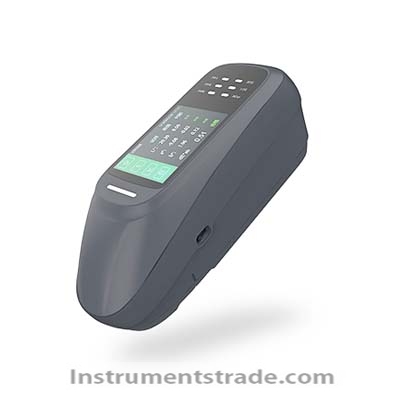

DC-23D reference portable spectrophotometer

Product ID：GGCcsyi056

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberDC-23D
Brand NameHZCAIPU
Payment TermsTT，PAYPAL，Alibaba.com Pay

DC-23D reference portable spectrophotometer
Introduction:
DC-23D benchmark portable spectrophotometer, with ultra-high repeatability accuracy dE * ab ≤ 0.01, excellent instrument inter table difference dE * ab ≤ 0.12, industry-leading wavelength range: 360-780nm, dual light source system, providing beyond expected service life, supporting NetProf network calibration function, providing 6 measurement apertures, easy to measure samples of different shapes.
Features:
1. Industry leading wavelength range: 360-780nm
2. Outstanding inter platform performance and repeatability
3. Dual light source system, providing a lifespan beyond expectations
4. Support NetProf network calibration function
5. Provide 6 measurement apertures for easy measurement of samples of different shapes
6. BCRA green plate wavelength calibration
7. Increase indication accuracy by 60%
8. Intelligent automatic calibration
Technical Specifications:
Product model: Spectrophotometer DC-23D
Measurement structure: D/8, SCI+SCE
Light source lifespan: 6 million cycles
Wavelength range: 360-740nm
Calibration method: BCRA certified black and white board energy calibration, green board wavelength accuracy calibration
Measurement repeatability: dE * ab ≤ 0.02
Inter station difference: dE * ab ≤ 0.25
Display accuracy: 0.01
Lighting source: full band balanced LED light source+xenon lamp
UV light source: available
Measurement indicators:
Spectral reflectance, CIE Lab, CIE LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB color difference (Δ E * ab, Δ E * cmc, Δ E * 94, Δ E * 00),
Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby),
Yellowth (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Stain fastness, Color fastness,
Tint (ASTM E313-00) color density CMYK (A, T, E, M), heterochromatic index Milm, Munsell, hiding power, strength (dye strength, coloring power)
Measurement and observation method: camera
Calibration: Intelligent automatic calibration
Software support: Android, iOS, Windows, WeChat Mini Program
Accuracy guarantee: Ensure that the first level measurement is qualified
Field of view: 2 °, 10 °
Integral sphere diameter: 40mm
Compliant with standards: CIE * * * 5, GB/T 3978, GB 2893, GB/T 18833,
ISO7724-1,ASTM E1164,DIN5033 Teil7
Spectral splitting method: grating
Sensor: Dual column high-precision CMOS array sensor
Wavelength interval: 10nm
Reflectance measurement range: 0-200%
Reflectivity resolution: 0.01%
Measurement time: approximately 1 second
Interface: USB, Bluetooth
Screen: Full color screen, 3.5 inches
Battery capacity: capable of continuous measurement 8000 times on a single charge, 7.2V/3000mAh
Language: Simplified Chinese, English
Storage: Instrument: 10000 pieces; APP: Massive Storage
Size: 233mm * 77mm * 93mm
Weight: Approximately 600g

Introduction:
DC-23D benchmark portable spectrophotometer, with ultra-high repeatability accuracy dE * ab ≤ 0.01, excellent instrument inter table difference dE * ab ≤ 0.12, industry-leading wavelength range: 360-780nm, dual light source system, providing beyond expected service life, supporting NetProf network calibration function, providing 6 measurement apertures, easy to measure samples of different shapes.
