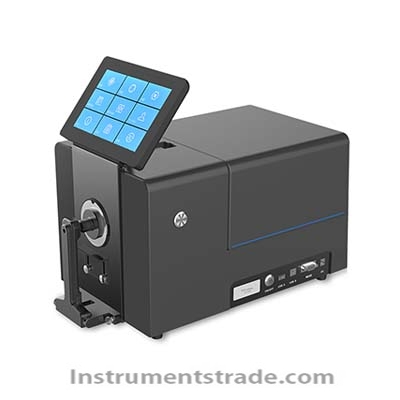

CS-820P desktop spectrophotometer Introduction: The desktop spectrophotometer CS-820P is an intelligent, convenient, and precise spectrophotometer that uses a TFT true color 7-inch capacitive touch screen, full spectrum, and Android operating system. It has two lighting modes: pulsed xenon lamp and LED, compatible with reflective D/8 and transmissive D/0 measurement modes, can include UV or exclude UV measurement, accurate and stable color measurement, large storage capacity, powerful PC expansion function, and can be used for laboratory color analysis and transmission. Features: 1. CS-820P provides real inter station differences without falsely labeling parameters Inter station difference refers to the error between multiple instruments, with smaller values indicating better instrument performance 2. Configure a green board as an accuracy verification for long-term use of the instrument When switching calibers, the instrument automatically recognizes the caliber size without any errors 4. High definition preview camera, clear positioning of the tested area 5. One click power on, guide after power on, help beginners quickly get started and operate without training 6. The software interface is concise and clear, with prominent data display and easy readability 7. Measuring handle damping design, slow and natural rebound, less likely to damage the sample 8. Transmitting D/0 structure and reflecting D/8 structure 9. Dual path spectral analysis technology 10. Compatible with SCI/SCE measurement and supports rapid measurement of SCI+SCE simultaneously 11. Configure Android operating system and rotatable capacitive touch screen 12. Open transmission sample compartment, accommodating large-sized samples An open transmission sample chamber, not limited by sample size, can easily handle even large-sized films. 13. Rich accessories 14. The instrument comes with an accessory drawer for easy protection and storage of accessories 15. Four UV measurement modes allow fluorescence to be visible without any escape Technical Specifications: Model: CS-820P Sensor: Silicon photodiode array Spectral splitting method: concave grating Integral sphere diameter: 152mm Measurement wavelength range 360nm-780nm Measurement wavelength interval: 10nm Spectral resolution: 5nm Reflectivity measurement range: 0-200%, resolution 0.01% Lighting source: pulsed xenon lamp and LED UV measurement: including UV, 400nm cut-off, 420nm cut-off, 460nm cut-off Measurement time: Single mode<2 seconds Transmission measurement specifications: Sample width and height: unlimited, thickness: ≤ 50mm Repeatability: Δ E * ab ≤ 0.02, spectral reflectance/transmittance ≤ 0.1% Inter device difference: XLAV Δ E * ab 0.25 Standard Observer: 2 ° Standard Observer and 10 ° Standard Observer Languages: Simplified Chinese, English, Traditional Chinese, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish Display content: Spectral data, spectrogram, chromaticity data, color difference data, color difference chart, qualified/unqualified judgment, simulated color, color evaluation, haze, liquid chromaticity, color bias Color space: CIE LAB, CIE LUV, LCh, Hunter Lab, Yxy, XYZ, Musell, s-RGB, β xy Color difference formula: Δ E * ab, Δ E * CH, Δ E * uv, Δ E * cmc, Δ E * 94, Δ E * 00, Δ Eab (Hunter), 555 color tone classification Storage space: 8GB Screen size: 7-inch capacitive touch screen Operating System: Android Power supply: DC stable power supply Operating temperature and humidity: 5-40 ° C, no condensation below 80% relative humidity (at 35 ° C) Storage temperature and humidity: -20~45 ° C, no condensation below 80% relative humidity (at 35 ° C) Interface: RS-232, USB, USB-B Volume: Length, Width, and Height: 465 * 240 * 260mm Weight: 10.8kg
Introduction: The desktop spectrophotometer CS-820P is an intelligent, convenient, and precise spectrophotometer that uses a TFT true color 7-inch capacitive touch screen, full spectrum, and Android operating system. It has two lighting modes: pulsed xenon lamp and LED, compatible with reflective D/8 and transmissive D/0 measurement modes, can include UV or exclude UV measurement, accurate and stable color measurement, large storage capacity, powerful PC expansion function, and can be used for laboratory color analysis and transmission.
