CEL-PE300E-3A uniform light source

Product ID:GSYgy003

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCEL-PE300E-3A
    Brand NameZHONGJIAOJINYUAN
    Payment TermsT/T, paypal

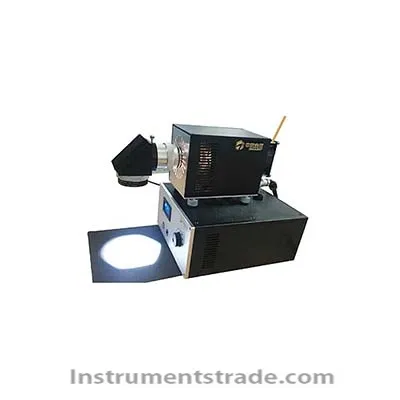

     CEL-PE300E-3A uniform light source

    Introduction:
    A uniform light source for photocatalysis, using a PerkinElmer 300W bulb, is a new 3A source that is very close to the solar spectrum. The 300W analog daylight xenon lamp source is used for photocatalysis, photoelectric test, and solar cell simulation analysis.
    CEL-PE300E-3A uniform light source, using uniform eye lens system (fly eye lens) uniform illumination, AM1.5 standard filter (optional), 0.1~5Sun light intensity adjustable, photoelectric test, photoreaction, Photocatalytic, simulated daylight, biological light multi-purpose light source.
     Features:
    1) Xenon light source with simulated sunlight close to 3A level;
    2) The output of the hexagonal spot is closer to the structure of the fly's eye, and the light effect is better;
    3) Output optical power 0.1~5Sun (10~500mw/cm2), continuously adjustable;
    4) large screen LCD panel 240*128dpi;
    5) CEL-PHCS300 dedicated multi-function control software;
    6) Product design safety, grounding, high voltage and other multi-level safety protection;
    7) Multiple control modes, * manual control, * light control mode, * automatic control, * intelligent control, * program control, * remote control;
    8) With the NP2000 optical power meter, the absolute irradiance value is displayed in real time, and the constant optical power is stabilized in real time;
    9) Realized automatic power-on, power-off, automatic adjustment of optical power, custom switch times and frequencies, and digital monitoring;
    10) Program mode can automatically adjust the light intensity according to the different stages of the experiment time (can completely simulate the change of daylight throughout the day)
    Technical Parameters:
    Output optical power: 0.1~5Sun (10~500mw/cm2)
    Light uniformity (standard battery): <5%, hexagonal spot (optional quadrilateral spot)
    Spot diameter: 30~80mm (depending on the irradiation distance)
    Power stability: <0.05%
    Light stability: <0.5%
    Filter: Can adapt to M62, M52, circular filter;
    (Optional 50mm*50mm filter fixture)



  • Introduction:
    A uniform light source for photocatalysis, using a PerkinElmer 300W bulb, is a new 3A source that is very close to the solar spectrum. The 300W analog daylight xenon lamp source is used for photocatalysis, photoelectric test, and solar cell simulation analysis.
    CEL-PE300E-3A uniform light source, using uniform eye lens system (fly eye lens) uniform illumination, AM1.5 standard filter (optional), 0.1~5Sun light intensity adjustable, photoelectric test, photoreaction, Photocatalytic, simulated daylight, biological light multi-purpose light source.
