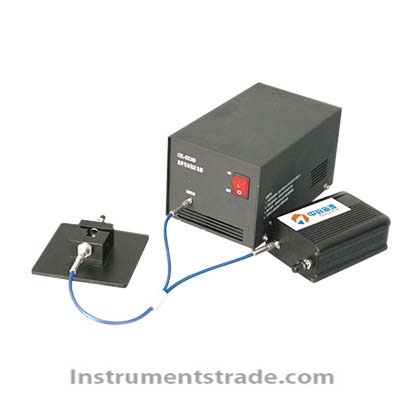

CEL-DHS deuterium tungsten lamp light source system Introduction: The CEL-DHS deuterium tungsten lamp light source is a fiber-coupled ultraviolet/visible/near-infrared light source, covering a wavelength range from 200 to 1100nm. At the visible and near-infrared end, a 10W tungsten lamp is used, which outputs independently from the deuterium lamp at the ultraviolet end. The overall wavelength is output using a standard SMA905 coupled fiber. It is powered directly by a 220VAC power supply and has strong integrity, making it a reliable choice for transmission and absorption spectroscopy measurements. Features: 1. Fiber coupling 2. UV/Vis/NIR optical output 3. Separate switches, allowing independent control 4. High stability 5. Compact overall structure 6. Long service life Technical Specifications: complete machine Spectral output range: 200nm~1100nm Power: 40W Input power supply: 150V~250V AC Operating temperature: 5~35℃ Warm-up time: 1~5 minutes Weight: 2.5kg Fiber optic interface: SMA905 Deuterium lamp (CEL-GX30D fiber-optic deuterium light source) Spectral output range: 200nm~400nm Power: 30W Lifespan: >1000 hours Stability: <1×10-3 AU Drift: <0.25%/h Starting voltage: approximately 1kV Excitation frequency: 250kHz Tungsten lamp (CEL-GW10 fiber-optic-guided tungsten lamp light source) Spectral output range: 350nm~1100nm Power: 10W Lifespan: 2000 hours
CEL-DHS deuterium tungsten lamp light source system Introduction: The CEL-DHS deuterium tungsten lamp light source is a fiber-coupled ultraviolet/visible/near-infrared light source, covering a wavelength range from 200 to 1100nm. At the visible and near-infrared end, a 10W tungsten lamp is used, which outputs independently from the deuterium lamp at the ultraviolet end. The overall wavelength is output using a standard SMA905 coupled fiber. It is powered directly by a 220VAC power supply and has strong integrity, making it a reliable choice for transmission and absorption spectroscopy measurements.
