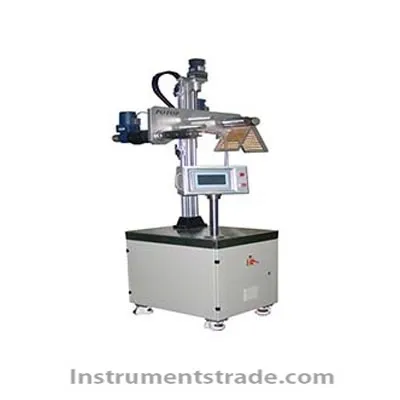

Introduction: Rheometer Workstation-Blown Film Module is mainly composed of electric lifting mold base, herringbone frame, traction roller and winding roller. Features: 1. The film frame can be raised and lowered electrically, which is convenient for film introduction and film blowing process adjustment and high flexibility 2. The film blowing frame can be telescopically adjusted, which is convenient for transportation and movement 3. The hard chrome-plated mirror roller is matched with 304 stainless steel roller core, which has reliable quality and high surface finish. Application range: Filling material dispersion test Blown film sample preparation New material blown film formulation research and development Blown film performance test of polymer materials Technical parameter: Model: CBVM-25/26 Blown film diameter: 25 mm Folding diameter: 170 mm Roll width: 260 mm Traction speed: 0-3 m/min Die heating temperature: 350℃ Temperature control accuracy: ±1℃ Total power: 0.9 kW
Introduction: Rheometer Workstation-Blown Film Module is mainly composed of electric lifting mold base, herringbone frame, traction roller and winding roller.
