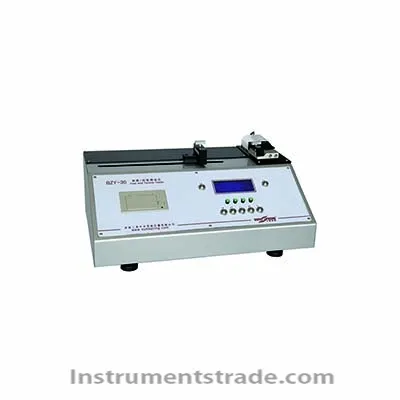

BZY-30 peel / tensile strength tester Introduction:
Tensile Strength Tester BZY-30 is suitable for tensile strength, elongation at break of related products such as paper, adhesive, adhesive tape, adhesive, medical patch, protective film, release paper, , Tensile energy absorption, stripping, pull off and other performance tests. BZY-30 adopts imported brands screw drive system can achieve speed test Promise speed, the use of internationally renowned brand force sensor can test small force changes, the test data is stable and high precision, especially for wet tensile strength and release paper Products for tensile peel test. Instrument performance is not only high-end in similar products, but also has a unique function of a machine dual function, is widely used in quality inspection agencies, research institutions and major companies.
Technical Parameters:
Maximum test force: 30N
Test force effective range: 2% ~ 100% FS
Test force minimum reading value: 0.01N
Displacement minimum reading value: 0.01mm
Test accuracy: 1 level
Speed range: 1 ~ 500mm / min stepless speed regulation (tensile test can be set to 20 ± 5mm / min)
Speed accuracy: ≤ ± 2%
Test stroke: 260mm
Sample width: 0
Tension test fixture distance from the test table: 40mm
Dimensions: 550 × 370 × 240 mm (length, width and height)
Net weight: 28Kg
Tensile Strength Tester BZY-30 is suitable for tensile strength, elongation at break of related products such as paper, adhesive, adhesive tape, adhesive, medical patch, protective film, release paper, , Tensile energy absorption, stripping, pull off and other performance tests.
