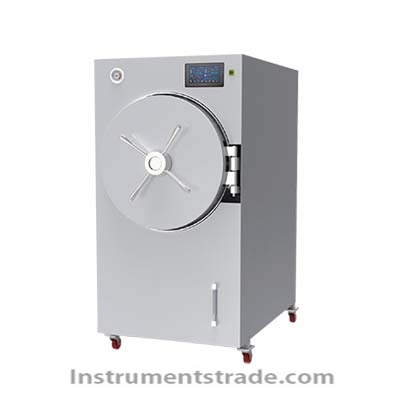

BXW series horizontal round sterilizer for Biology laboratory

Product ID:SYQXXDmj025

US$0.00 ~ US$1.00 PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBXW
    Brand NameSHBX
    Payment TermsT/T, paypal
    Introduction:
    The horizontal round sterilizer (cross-arm structure) series products are rapid and reliable disinfection and sterilization equipment using pressure saturated steam, and are applicable to medical and health undertakings, scientific research, agriculture and other units, to medical instruments, dressings, and glass. Sterilization and sterilization of vessels, solution media, etc. are ideal equipment.
    Features:
    1. The inner chamber of the sterilizer is made of high-quality stainless steel material after argon arc welding and is durable;
    2. The whole process of sterilization adopts microcomputer automatic control, and the degree of automation is high. If there is a failure, it will automatically alarm;
    3. The display shows parameters such as sterilization stage and temperature and time, which is convenient for the user to understand the operation situation;
    4. Use safety interlocks that meet regulatory requirements:
    (1) The sterilization process cannot be started when the door is not closed and locked;
    (2) When there is pressure in the inner chamber, the locking device is started to prevent the handwheel from rotating to ensure the safety of the user;
    5. The seal ring adopts self-expanding structure design, which has the characteristics of good sealing effect and long service life;
    6. The sterilizer comes with a steam generator and a water pump. The device has the following functions:
    (1) Add water pump to automatically enter water and make up water, so that the water level in the steam generator is controlled within a reasonable range;
    (2) When the water level in the steam generator reaches the lowest level of the water level, the power of the heating pipe can be cut off, and the alarm is given (in the sterilization state);
    (3) A pressure controller is used to control the pressure in the steam generator and a safety valve is provided for protection after overpressure;
    7. After the sterilization, the steam exhaust mode can be selected to meet the pressure relief requirements after sterilization of different types of substances;
    8. PID temperature control function, through the selection can automatically correct the heating control parameters to prevent temperature overshoot.
    Technical Parameters:
    Product number
    (cross arm structure)
    Sterilization room size(diameterx length) mm Effective volume
    (L)
    Sterilization temperature
      (°C)
    Applicable power
    (Voltage frequency)
    power
    (kW)
    Dimensions
    (Length × width × height) mm
    BXW-150SD-A Ф472×1025 150 109131 380V/50HZ 10 764×1460×1590
    BXW-150SD-G 11.5
    BXW-200SD-A Ф524×1025 200 10 764×1460×1590
    BXW-200SD-G 11.5



  • Introduction:
    The horizontal round sterilizer (cross-arm structure) series products are rapid and reliable disinfection and sterilization equipment using pressure saturated steam, and are applicable to medical and health undertakings, scientific research, agriculture and other units, to medical instruments, dressings, and glass. Sterilization and sterilization of vessels, solution media, etc. are ideal equipment.
