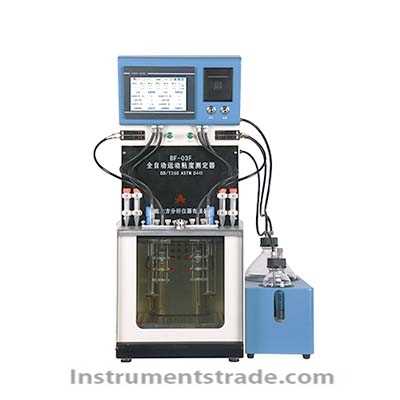

BF-03F Fully automatic kinematic viscosity tester
Introduction:
The BF-03F fully automatic kinematic viscosity tester is designed and manufactured in accordance with GB/T265 and ASTM D445 standards, enabling accurate determination of the kinematic viscosity of petroleum products in strict accordance with the standards' descriptions.
The working principle involves loading the sample into the selected capillary viscometer, and immersing the capillary in a constant temperature bath. The sample is drawn into the calibration position, and when the sample flows to the upper calibration position, the instrument automatically starts recording time. When the sample flows past the lower calibration position, the instrument automatically stops recording time, and the instrument will automatically calculate the kinematic viscosity of the sample.
Features:
1. Excellent user interface, easy to operate
2. Complete the entire process of sampling, timing, calculation, printing, cleaning, and drying of kinematic viscosity with one click.
3. Purely imported optical fiber detection is not interfered by indoor light or lighting
4. The uniquely designed viscometer fixture facilitates easy disassembly and replacement of the viscometer
5. The position of fiber detection can be adjusted flexibly
6. Fully PLC controlled, with extremely high stability and reliability
7. Fully automatic storage of 1000 pieces of historical data
8. The testing process adheres to standard regulations, ensuring reliable data
9. It can work continuously for a long time with an extremely low failure rate
Technical Specifications:
Temperature range: room temperature +5 to +100°C, accuracy ±0.01°C.
Temperature sensor: Pt100 stainless steel probe, with built-in temperature correction, ensuring reliable detection results.
Heating method: electric heating unit, with a maximum heating power of 1200 W.
Detection method: Infrared fiber detection.
Display: 7-inch industrial color touch screen.
Control system: PLC control system
Temperature correction: adjustable within 0-100.
Data storage: 1000 historical records.
Power Supply: AC220V 50Hz. Maximum Power: 1500 W
Operating ambient temperature: 10~40℃
Storage environment temperature: 0~50℃
