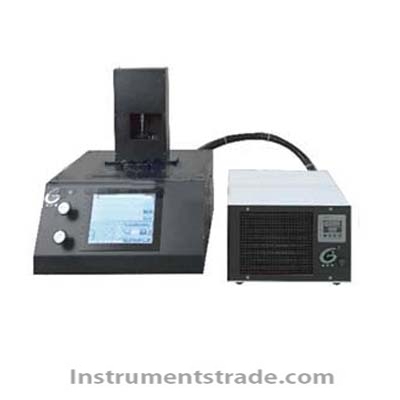

BBR Bending Beam Rheometer

Product ID:WLNlb032

US$0.00 ~ US$1.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBBR
    Brand NameTINJINGANGYUAN
    Payment TermsTT,PAYPAL
     BBR Bending Beam Rheometer

    Introduction:
    BBR Bending Beam Rheometers Meet Specifications: ASTM D 6648, AASH TO T3143-09, JTG E20 T 0627-2011
    Main application: The method of measuring the failure strain and failure stress of asphalt, suitable for the original asphalt, asphalt after rotating film oven test (RTF0 ) and asphalt pressure aging vessel aging (PAV).
    Main configuration: main engine, temperature control (circulation) system, special fixture for asphalt, special testing software for asphalt.
    technical parameter:
    Load range: 0-500N
    Load accuracy: 0.1N
    Flexural creep stiffness modulus: 20-1000MPA
    Displacement range: 0-50mm
    Displacement accuracy: 1μm
    Preload force: 35mn (+/-10mn)
    Actual loading force: 980mn (+/-50mn)
    Temperature range: room temperature~-40±0.1
    Working power: 220V, 50Hz
    Equipment size: (H*W*D) 410*590*960mm
    Loading method: pneumatic loading
    Color touch screen control

  • Introduction:
    BBR Bending Beam Rheometers Meet Specifications: ASTM D 6648, AASH TO T3143-09, JTG E20 T 0627-2011
    Main application: The method of measuring the failure strain and failure stress of asphalt, suitable for the original asphalt, asphalt after rotating film oven test (RTF0 ) and asphalt pressure aging vessel aging (PAV).
    Main configuration: main engine, temperature control (circulation) system, special fixture for asphalt, special testing software for asphalt.
