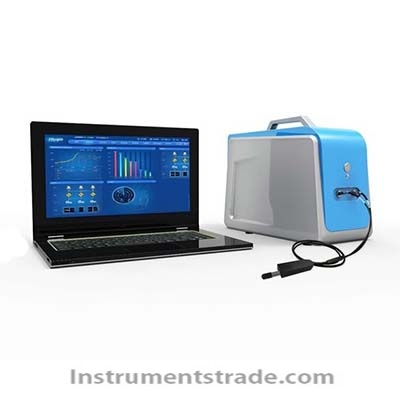

ATR3100 Enhanced High Sensitivity Raman Spectrometer

Product ID：FGlm040

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberATR3100

Brand NameAOPUTIANCHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ATR3100 Enhanced High Sensitivity Raman Spectrometer
Product Introduction
ATR3100 is an enhanced high-sensitivity Raman spectrometer designed for demanding Raman analysis applications requiring ultra-high signal-to-noise performance, low detection noise, and reliable field operation. Developed with advanced cooled CCD detection technology, optimized optical design, and ultra-low noise signal processing circuits, ATR3100 delivers exceptional spectral sensitivity and stability.
Compared with the ATR2000 Raman spectrometer, ATR3100 improves the signal-to-noise ratio by more than 15 times, with nearly 100 times enhancement at the 2000 cm⁻¹ Raman shift region. The system is equipped with a specially customized ultra-low noise CCD signal processing circuit with quantization noise below 3 counts (RMS), achieving industry-leading detection performance.
With compact structure, Android touchscreen control, LAN remote testing capability, and battery-powered operation, ATR3100 is suitable for both laboratory research and on-site Raman measurement.

Key Features
• Ultra-high signal-to-noise ratio, more than 15 times higher than ATR2000
• Ultra-low noise CCD signal processing technology with noise level below 3 counts (RMS)
• Wide Raman spectral range from 250-2700 cm⁻¹
• High spectral resolution up to 5-6 cm⁻¹
• 18-bit high-resolution signal acquisition
• High-power 785 nm excitation laser with output power ≥500 mW
• Thermoelectrically cooled ultra-sensitive FFT-CCD detector
• Portable design with 110/220V power supply and 19V DC adapter
• Battery operation time exceeding 3.5 hours
• Android touchscreen operation for convenient control
• LAN remote testing and network operation support
• Stable spectral performance for long-term measurements

Working Principle
ATR3100 enhanced Raman spectrometer uses Raman scattering technology to analyze molecular structures and chemical compositions.
During measurement, the 785 nm excitation laser irradiates the sample through the Raman probe. When laser photons interact with molecular vibrations, a small portion of scattered light undergoes energy shifts known as Raman scattering. These shifted signals contain molecular fingerprint information.
The collected Raman signal is transmitted to the high-sensitivity cooled CCD detector. Through optimized optical components and ultra-low noise signal processing circuits, weak Raman signals are amplified and converted into high-quality spectral data for qualitative and quantitative analysis.
The combination of high-performance optics, cooled detector technology, and advanced signal processing enables ATR3100 to achieve excellent sensitivity and spectral stability.

Performance Advantages

Performance Item	ATR3100 Advantage
Signal-to-noise ratio	>3000:1
Detector technology	Ultra-high sensitivity FFT-CCD with TEC cooling
Noise level	<3 counts (RMS)
Spectral stability	σ/μ <0.5% (8 hours continuous operation)
Temperature stability	Spectral shift ≤1 cm⁻¹ (10-40℃)
Portability	Compact design with battery support
Remote operation	LAN network testing supported

Technical Parameters
ATR3100 System

Parameter	Specification
Interface	USB 2.0
Integration Time	4 ms - 120 s
Supply Voltage	DC 19V (±5%)
Operating Temperature	-15℃ to 40℃
Operating Humidity	<95%
Dimensions (L×W×H)	30 × 22.5 × 13.2 cm³
Weight	7.5 kg

Reliability Performance

Parameter	Specification
Spectral Stability	σ/μ <0.5% (COT 8 hours)
Temperature Stability	Spectral shift ≤1 cm⁻¹ (10-40℃)
Spectral Intensity Variation	<±5% (5-40℃)

Optical Parameters

Parameter	Specification
Spectral Region	250-2700 cm⁻¹
Spectral Resolution	5 cm⁻¹ @900 nm
Signal-to-Noise Ratio	>3000:1 (918 cm⁻¹ Acetonitrile, 10s accumulation, 200mW)
Entrance Slit	50 μm
Optical System	f/4 Crossed Symmetrical Czerny-Turner
Focal Length	98 mm

Detector Specifications

Parameter	Specification
Detector Type	Ultra-high sensitivity FFT-CCD with TEC cooling
Detection Range	200-1100 nm
Effective Pixel	2048 × 64
Dynamic Range	10000:1
Pixel Size	14 μm × 14 μm
Full Well Capacity	300 Ke⁻
Quantum Efficiency	QE >40%
Sensitivity	6.5 μV/e⁻

Excitation Laser

Parameter	Specification
Laser Wavelength	785 nm (±0.5 nm)
FWHM	0.08 nm
Output Power	≥500 mW
Power Stability	σ/μ <±0.2%

Raman Probe

Parameter	Specification
Working Distance	6 mm
Rayleigh Scattering Resistance	OD>8
Numerical Aperture	0.3
Aperture	7 mm

Applications
Biological Science
ATR3100 provides high-sensitivity Raman detection for biomolecule analysis, biochemical research, and biological sample characterization.
Typical applications:
• Protein and biomolecule analysis
• Cell and tissue research
• Biochemical composition identification

Pharmaceutical Engineering
The instrument supports pharmaceutical quality control and research by providing rapid, non-destructive molecular identification.
Applications include:
• Pharmaceutical raw material identification
• Drug composition analysis
• Quality control testing
• Chemical structure verification

Forensic Analysis
ATR3100 enables fast and accurate material identification for forensic laboratories.
Applications:
• Unknown substance identification
• Trace evidence analysis
• Chemical sample screening

Agriculture and Food Safety
Used for rapid analysis of food and agricultural products.
Applications:
• Food composition analysis
• Contaminant detection
• Agricultural product quality inspection

Gemstone Identification
Raman spectroscopy provides non-destructive gemstone and mineral analysis.
Applications:
• Gemstone identification
• Mineral composition analysis
• Authenticity verification

Environmental Science
ATR3100 supports environmental monitoring and chemical analysis.
Applications:
• Pollutant identification
• Environmental sample analysis
• Chemical contamination research

ATR3100 vs Conventional Raman Spectrometers

Comparison Item	ATR3100 Enhanced Raman Spectrometer	Conventional Raman Spectrometer
Sensitivity	Ultra-high sensitivity with cooled FFT-CCD detector	Standard sensitivity
Noise Performance	<3 counts RMS	Higher detection noise
Signal-to-Noise Ratio	>3000:1	Usually lower
Portability	Compact and battery-supported	Mainly laboratory installation
Operation	Android touchscreen + LAN remote control	Traditional PC operation
Field Application	Suitable for on-site testing	Limited mobility

Frequently Asked Questions (FAQ)
1. What is ATR3100 Raman spectrometer used for?
ATR3100 is used for high-sensitivity molecular analysis in pharmaceutical research, biological science, forensic testing, food safety, gemstone identification, and environmental analysis.
2. What makes ATR3100 different from standard Raman spectrometers?
ATR3100 features an enhanced optical system, ultra-low noise CCD signal processing, and cooled FFT-CCD detector technology, providing significantly higher sensitivity and signal-to-noise performance.
3. What is the spectral range of ATR3100?
ATR3100 covers a Raman spectral range of 250-2700 cm⁻¹, suitable for various molecular fingerprint analysis applications.
4. Can ATR3100 be used for field measurement?
Yes. ATR3100 features a compact structure, DC power supply, battery operation exceeding 3.5 hours, and LAN remote testing capability, making it suitable for field applications.
5. Which laser wavelength does ATR3100 use?
ATR3100 uses a 785 nm excitation laser with output power of ≥500 mW, providing excellent Raman signal excitation performance while reducing fluorescence interference.
6. Is ATR3100 suitable for pharmaceutical quality control?
Yes. ATR3100 is widely applicable for pharmaceutical raw material identification, drug analysis, and quality control due to its high sensitivity and non-destructive detection capability.
