Position: Home > > Analytical instruments > Spectroscopy Equipment > Laser Raman spectroscopy > ATR3000-1064 Portable Raman Spectrometer(1064 nm Low-Fluorescence System)

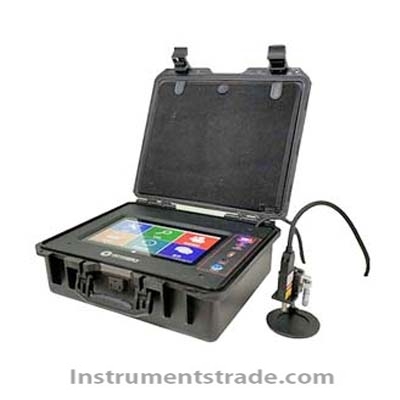

ATR3000-1064 Portable Raman Spectrometer(1064 nm Low-Fluorescence System)

Product ID：FGlm036

Price: US$44,500.00 ~ US$56,000.00 PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberATR3000-1064

Brand NameAOPUTIANCHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ATR3000-1064 Portable Raman Spectrometer (1064 nm Low-Fluorescence System)

What is ATR3000-1064 Raman Spectrometer?
The ATR3000-1064 is a portable 1064 nm excitation Raman spectrometer designed for high-precision molecular and material analysis.
It is optimized for low-fluorescence Raman detection, enabling accurate analysis of samples that are difficult for conventional Raman systems, such as:
• Fluorescent materials
• Dark-colored samples
• Biological samples
• Complex chemical mixtures
The system integrates a 1064 nm laser, high-sensitivity InGaAs detector, and TE cooling technology, ensuring high signal-to-noise ratio and stable spectral performance.

How does ATR3000-1064 work? (Raman Principle)
The instrument works based on Raman scattering theory:
• A 1064 nm laser irradiates the sample
• Molecular vibrations generate scattered light
• Raman signals are separated from background light
• Detector captures spectral fingerprints
• Software identifies molecular composition
Because of the 1064 nm excitation wavelength, fluorescence interference is greatly reduced, improving analytical accuracy.

Key Features
• 1064 nm excitation laser with ultra-low fluorescence interference
• High-sensitivity InGaAs linear CCD detector
• TE cooling down to -20°C for ultra-low noise performance
• Strong embedded Raman analysis software system
• Fluorescence background suppression algorithm
• Automatic peak detection and spectral interpretation
• Android 6.0 intelligent operating system
• 11.6-inch HD capacitive touchscreen (1920×1080)
• Multi-touch user interface
• USB 2.0 data transmission
• LAN remote control support
• Battery operation time > 5 hours
• IP67 dustproof and waterproof protection
• Portable and field-ready design

Applications
The ATR3000-1064 Raman spectrometer is widely used in:
• Pharmaceutical identification and raw material verification
• Forensic investigation and drug detection
• Food safety inspection and quality control
• Gemstone and mineral authentication
• Environmental pollution analysis
• Biological and microbiological research

Technical Specifications

Parameter	Specification
Excitation Wavelength	1064 nm
Spectral Range	200–2600 cm⁻¹
Spectral Resolution	~13 cm⁻¹
Detector	High-sensitivity InGaAs linear CCD
Cooling System	TE cooling to -20°C
Display	11.6-inch HD touchscreen (1920×1080)
Operating System	Android 6.0
Data Interface	USB 2.0
Remote Control	LAN supported
Battery Life	> 5 hours
Protection Level	IP67 dustproof & waterproof
Instrument Type	Portable Raman spectrometer

Why choose 1064 nm Raman technology?
The 1064 nm Raman system is preferred because it:
• Minimizes fluorescence interference
• Improves signal-to-noise ratio (SNR)
• Enables testing of dark and colored samples
• Provides more stable spectral output in complex matrices
This makes ATR3000-1064 ideal for real-world and high-interference applications.

Advantages vs Traditional Raman Spectrometers

Feature	ATR3000-1064	Traditional Raman (532/785 nm)
Fluorescence Interference	Very low	High
Sample Compatibility	Wide (fluorescent & dark samples)	Limited
Detector Type	Cooled InGaAs CCD	Standard CCD
Field Use	Portable, IP67 rated	Mostly lab-based
Stability	High long-term stability	Medium
Signal Quality	High SNR	Affected by fluorescence

Conclusion:
ATR3000-1064 is optimized for fluorescent and complex samples, outperforming traditional Raman systems in real-world applications.

FAQ (Featured Snippet Optimized)
Q1: What is ATR3000-1064 used for?
It is used for molecular identification and material analysis using 1064 nm Raman spectroscopy.
Q2: Why choose 1064 nm Raman spectrometer?
Because it significantly reduces fluorescence interference and improves detection accuracy.
Q3: Can it analyze biological and dark samples?
Yes, it is ideal for fluorescent, biological, and dark-colored samples.
Q4: Is the instrument portable?
Yes, it is a portable Raman spectrometer with battery operation and IP67 protection.
Q5: What industries use it?
Pharmaceuticals, forensics, food safety, gemology, environmental science, and biology.

Introduction:
ATR3000-1064 is a portable Raman spectrometer with an excitation wavelength of 1064nm. It is a member of the ATR3000 series, which is well-known in the scientific research field. The ATR3000-1064 is equipped with a laser with an excitation wavelength of 1064 nm and a Raman filter set with high extinction ratio. It uses a highly sensitive InGaAs array detector and ultra-low temperature TE cooling for better signal-to-noise ratio and more. High dynamic range.
Due to the low fluorescence of 1064nm, ATR3000-1064 avoids fluorescence interference and is suitable for detecting a large number of highly fluorescent samples such as dyes, inks, petroleum, biological samples and so on. The spectral coverage of the ATR3000-1064 is 200~260-1 with a spectral resolution of 13 cm-1. The small size, light weight and low power consumption make the ATR3000-1064 a laboratory-grade Raman test anywhere. Ideal for laboratory scientific research. Superior reliability and repeatability (temperature, long time) make the test results accurate and reliable, excellent low stray light conditions make the spectrometer have a wide range of applications, especially suitable for dark samples, colored samples, fluorescent samples, biological samples, bacteria, fuel Measurement of samples such as petroleum samples, vegetable oils, pharmaceuticals, explosives, etc.
