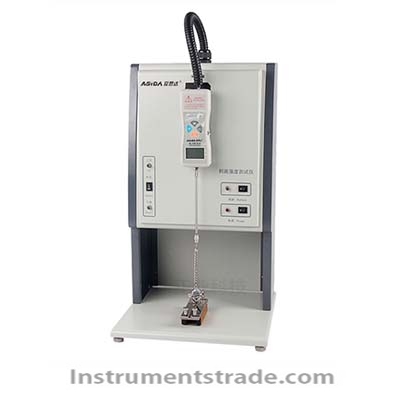

ASIDA-BL12 PCB Peel Strength Tester

Product Introduction
The ASIDA-BL12 PCB Peel Strength Tester is designed to measure the adhesion strength between metal layers and substrates in copper clad laminates (CCL) and printed circuit boards (PCBs). It helps evaluate copper foil bonding performance and supports quality control in PCB manufacturing, electronic materials testing, and laboratory inspection.
Featuring a precision force gauge, interchangeable test fixtures for flexible and rigid boards, and multiple force measurement units, the ASIDA-BL12 provides reliable peel force measurements. Dedicated software supports data analysis and connection to a printer for force curve output.
The tester complies with the specified requirements of IEC 326-2, Section 7.1; GB/T 4677-2002, Section 7.1.1; GB/T 13557-92; and IPC-TM-650 2.4.9.

Performance Features
1. High-precision force measurement: Equipped with a quality force gauge for accurate peel force testing.
2. Multiple measurement units: Freely switches between N, kg, and lb.
3. Rigid and flexible PCB compatibility: Interchangeable fixtures accommodate different board types.
4. Multiple force readings: Measures maximum, minimum, and average force values.
5. Force curve analysis: Dedicated software supports force curve display and printing through a compatible printer.
6. Stable testing speed: Operates at a specified test speed of 50.8 ± 2.5 mm/min.
7. Compact mechanical design: Combines a practical structure with convenient operation for laboratory and production quality control.
8. Standard-oriented testing: Supports peel strength evaluation according to specified PCB and copper clad laminate test methods.

Working Principle
The ASIDA-BL12 measures the force required to peel a metal layer, such as copper foil, away from its substrate.
The PCB or copper clad laminate specimen is secured in the appropriate fixture, and the metal layer is pulled at a controlled speed. The force gauge records the applied peeling force throughout the test. The instrument can determine the maximum, minimum, and average force values, helping users evaluate bonding strength and adhesion consistency.
When connected to the dedicated software and a compatible printer, the system can generate force curves for further analysis and documentation.

Technical Parameters

Parameter	Specification
Model	ASIDA-BL12
Product Type	PCB Peel Strength Tester
Maximum Travel	58 mm
Maximum Peeling Force	5 kgf (49 N or 11 lbf)
Measurement Accuracy	±0.1 N (based on 49 N full scale)
Test Speed	50.8 ± 2.5 mm/min
Measurement Units	N, kg, lb
Force Values	Maximum, minimum, and average
Test Compatibility	Rigid and flexible PCB test fixtures
Rated Voltage	220 V AC
Rated Frequency	50 Hz
Rated Current	0.1 A
Rated Power	20 W
Dimensions (L × W × H)	348 × 360 × 685 mm
Weight	15 kg
Software	Dedicated software with force curve printing support
Applicable Standards	IEC 326-2, Section 7.1; GB/T 4677-2002, Section 7.1.1; GB/T 13557-92; IPC-TM-650 2.4.9

Application Scenarios
• PCB manufacturing: Evaluates copper foil adhesion to insulating substrates during production.
• Copper clad laminate (CCL) testing: Measures bonding strength between conductive metal layers and laminate materials.
• Flexible printed circuit boards (FPC): Tests peel strength using compatible flexible-board fixtures.
• Rigid PCB quality control: Verifies metal-layer adhesion in rigid circuit boards.
• Electronic materials research: Supports the development and evaluation of copper foil, substrate, and bonding materials.
• Quality assurance laboratories: Provides quantitative peel force data for inspection, process validation, and quality documentation.
• Incoming material inspection: Helps assess the consistency of copper clad laminates and related materials.

ASIDA-BL12 vs. Conventional Peel Strength Testers

Comparison Item	ASIDA-BL12	Basic Manual Peel Tester
Force Measurement	Precision force gauge	Depends on gauge configuration
Maximum Force	49 N	Varies by model
Measurement Accuracy	±0.1 N	Varies by model
Test Speed	50.8 ± 2.5 mm/min	May depend on manual operation
Board Compatibility	Interchangeable rigid and flexible PCB fixtures	Depends on fixture design
Force Data	Maximum, minimum, and average values	Depends on instrument capability
Force Curve Output	Dedicated software and compatible printer	May require separate equipment
Measurement Units	N, kg, lb	Varies by model

Frequently Asked Questions
1. What is the ASIDA-BL12 PCB Peel Strength Tester used for?
It measures the adhesion strength between metal layers and substrates in printed circuit boards and copper clad laminates, helping evaluate bonding quality.
2. What is the maximum peeling force of the ASIDA-BL12?
The maximum peeling force is 49 N, equivalent to 5 kgf or approximately 11 lbf.
3. What is the measurement accuracy?
The specified measurement accuracy is ±0.1 N, based on a 49 N measurement range.
4. Can the ASIDA-BL12 test both rigid and flexible PCBs?
Yes. Its integrated design supports interchangeable test fixtures for rigid and flexible printed circuit boards.
5. Which measurement units are available?
The instrument allows users to switch between newtons (N), kilograms (kg), and pounds (lb).
6. Can the tester record different force values?
Yes. It can measure maximum, minimum, and average force values during peel testing.
7. Does the ASIDA-BL12 support force curve printing?
Yes. Dedicated software supports force curve output, and a compatible printer can be connected for printing test curves.
8. Which standards does the ASIDA-BL12 comply with?
The specified standards include IEC 326-2, Section 7.1; GB/T 4677-2002, Section 7.1.1; GB/T 13557-92; and IPC-TM-650 2.4.9.
9. What is the specified peel testing speed?
The test speed is 50.8 ± 2.5 mm/min, providing a defined operating speed for peel strength evaluation.
