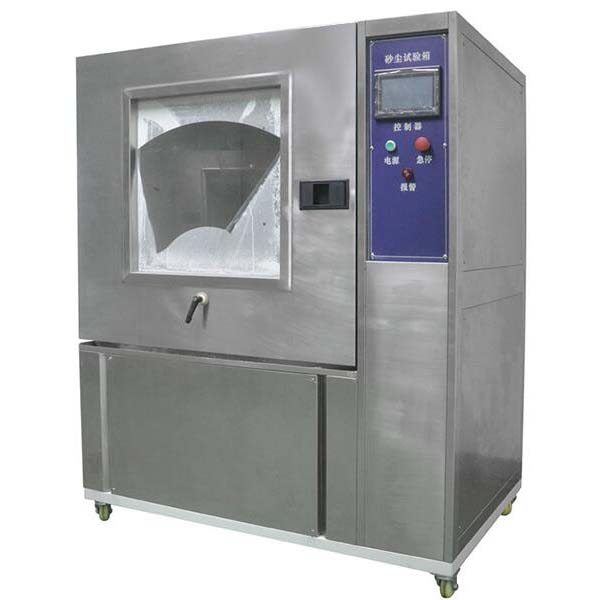

AP - SC ip56 dust test chamber

Product ID:WHsc002

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:20SETS/MON
share:
  • Product Introduction
  • Consulting
  • Model NumberAP - SC ip56
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Ip56 dust chamber used for assessment of electrical products, shell and seal in the large dust environment can ensure that equipment and components performance test, can be more realistic simulation of dust and so on each kind of environment. Dust top-down vertical laminar landed on samples, dust collection funnel through vibration to the circulation fan, so as to achieve circular blowing dust from top to bottom.
    Features:
    1. Imported nc programming system, LCD touch point control method, display,
    2. The machine all adopt imported parts, reliable stability increased
    3. High precision sheet metal structure and air tightness no dust leakage phenomenon
    4. The vibration system adopted transmission type to reduce noise and vibration
    5. Using rotary drum wind system, effective control of dust
    6. Special treatment of the heater at room temperature evenness online control stability
    Technical indicators:
    Vacuum pump: 0-30 kpa (optional)
    Pressure: 0.5 ~ 1.0 MPa
    Steel frame height adjustment range: 0 ~ 750 mm
    Timing range: 0-99 hours and 59 minutes
    Timing accuracy: + / - 1 minute
    Load cycle control: 0-99 hours and 59 minutes
    Purging cycle control: 1 SEC - 9999 minutes
    Air velocity: 2 m/s or less
    Test sand (or talcum powder) usage: 2 kg/m3-4 kg/m3
    Test sand (or talcum powder) specification: mesh is 75 um, wire 50 um



  • Brief introduction:
    Ip56 dust chamber used for assessment of electrical products, shell and seal in the large dust environment can ensure that equipment and components performance test, can be more realistic simulation of dust and so on each kind of environment. Dust top-down vertical laminar landed on samples, dust collection funnel through vibration to the circulation fan, so as to achieve circular blowing dust from top to bottom.
