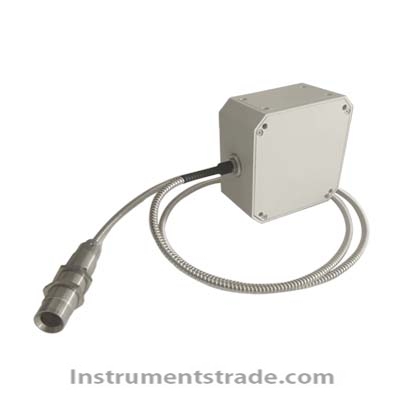

AL-B series online infrared thermometer Features: 1. The unique external fiber design and compact fiber probe are particularly suitable for installation in confined spaces or industrial sites with special installation requirements 2. It features protection functions such as power supply reversal and signal short circuit protection, and the fiber optic probe can be used in an ambient temperature of 150 degrees Celsius 3. The control unit is kept away from high-temperature targets, effectively eliminating measurement errors caused by high temperatures. It is suitable for harsh environments such as strong magnetic fields, high temperatures, and high pressures. 4. Simultaneously outputting 4-20mA analog signals and RS485 digital signal inputs to achieve digitization, and utilizing long-distance fiber optic transmission to achieve optical digitization 5. Equipped with laser aiming and process adjustment buttons, it can be adapted to different industrial sites 6. The product is a general-purpose thermometer, which can be freely applied to heating furnaces, paper making, cables, hardware, steel, plastics, rubber, composite materials, etc Technical Specifications: Measured temperature range and response wavelength: AL-B04I 300-1400℃ 0.3-1.7μm (forged welded pipe, heat treatment, chemical industry) AL-B06I 600-1600℃ 0.85-1.1μm (for rolling steel titanium alloy materials and refractory material production) AL-B08I, 800-2500℃, 0.85-1.1μm (vacuum equipment for tungsten and molybdenum materials, scientific research and testing) Measurement accuracy: ±0.75%FS Repeatability: 0.5% Resolution: 1℃ Response time: <5ms Aiming method: coaxial laser aiming Optical parameters: Detector: Indium, Silicon Measuring distance: 0.3m-∞ Distance coefficient: 75:1 Measurable minimum target: 6mm Power supply: 24VDC (±20%, 150mA) Analog output: 4-20mA\RS485 Digital output: RS485 (standard configuration) Insulation voltage: ≤500VAC Load capacity: ≤300Ω Ambient temperature: <60℃ Relative humidity: 10-95%, non-condensing 25-45℃ Physical dimensions: 100×100mm, standard fiber length of 1 meter Weight: 0.68kg
AL-B series online infrared thermometer Features: 1. The unique external fiber design and compact fiber probe are particularly suitable for installation in confined spaces or industrial sites with special installation requirements 2. It features protection functions such as power supply reversal and signal short circuit protection, and the fiber optic probe can be used in an ambient temperature of 150 degrees Celsius 3. The control unit is kept away from high-temperature targets, effectively eliminating measurement errors caused by high temperatures. It is suitable for harsh environments such as strong magnetic fields, high temperatures, and high pressures. 4. Simultaneously outputting 4-20mA analog signals and RS485 digital signal inputs to achieve digitization, and utilizing long-distance fiber optic transmission to achieve optical digitization 5. Equipped with laser aiming and process adjustment buttons, it can be adapted to different industrial sites 6. The product is a general-purpose thermometer, which can be freely applied to heating furnaces, paper making, cables, hardware, steel, plastics, rubber, composite materials, etc
