AFS200T Atomic Fluorescence Spectrometer

Position: Home > > Analytical instruments > Spectroscopy Equipment > Atomic fluorescence spectrum > AFS200T Series Dual-Channel Atomic Fluorescence Spectrometer

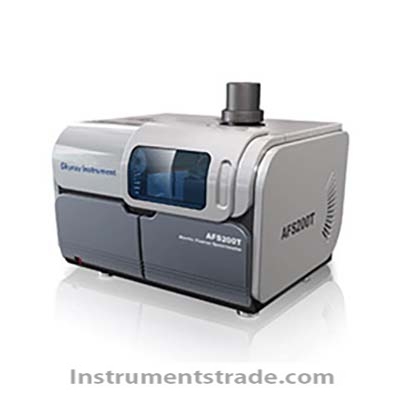

AFS200T Series Dual-Channel Atomic Fluorescence Spectrometer

Product ID：FGyzyg002

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberAFS200N

Brand NameJSTIANRUI

Payment TermsTT，PAYPAL，Alibaba.com Pay

AFS200T Series Dual-Channel Atomic Fluorescence Spectrometer

Product Overview
The AFS200T Series Atomic Fluorescence Spectrometer is a compact dual-channel analytical instrument designed for trace and ultra-trace determination of 11 elements, including arsenic (As), mercury (Hg), antimony (Sb), bismuth (Bi), selenium (Se), tellurium (Te), cadmium (Cd), germanium (Ge), lead (Pb), tin (Sn), and zinc (Zn).
The AFS200T uses a dual peristaltic-pump intermittent-flow injection system, non-dispersive optics, automatic gas-flow control, and a shielded quartz atomizer. Its dual-channel configuration enables simultaneous analysis of two elements, while single-channel enhancement can improve sensitivity and detection performance. The instrument is suitable for routine laboratory analysis where stable operation, simple handling, and low detection limits are required.

Key Features
• Dual-channel design for simultaneous analysis of two elements, with enhanced single-channel operation.
• Dual peristaltic-pump intermittent-flow injection system provides stable sample introduction and convenient maintenance.
• Non-dispersive optical system delivers high sensitivity in a compact instrument configuration.
• Automatic gas-flow control with dual mass flow controllers provides fast and stable flow regulation with control accuracy up to 1 mL/min.
• Real-time flame observation eliminates the need for a conventional flame observation window and allows continuous monitoring during analysis.
• Intelligent high-performance hollow cathode lamps automatically identify lamp information and record operating life and working conditions.
• Shielded quartz atomizer and two-stage gas-liquid separation help reduce fluorescence quenching and the influence of water vapor.

Working Principle
The AFS200T determines trace elements by atomic fluorescence spectrometry. The sample is introduced into the reaction system through the intermittent-flow injection system, where the target element is converted into volatile species through appropriate chemical reactions. The generated species are transported into the quartz atomizer and converted into free atoms.
The hollow cathode lamp provides element-specific excitation radiation. When the ground-state atoms absorb the characteristic radiation, they are excited to higher energy levels and subsequently emit characteristic fluorescence. The fluorescence intensity is measured by the optical system and correlated with the concentration of the target element.
The instrument supports automated qualitative and quantitative analysis, standard curve generation, sample calculation, pipeline cleaning, and test report generation through its dedicated software workstation.

Technical Specifications

Parameter	AFS200T Specification
Instrument Type	Dual-channel atomic fluorescence spectrometer
Detection Elements	As, Sb, Bi, Hg, Se, Te, Pb, Sn, Ge, Zn, Cd
Number of Elements	11
Injection System	Dual peristaltic-pump intermittent-flow injection
Detection Limit, As/Se/Pb/Bi/Sb/Te/Sn/Hg	≤0.01 μg/L
Detection Limit, Cold-Vapor Hg/Cd	≤0.001 μg/L
Detection Limit, Zn	≤1.0 μg/L
Detection Limit, Ge	≤0.05 μg/L
Precision (RSD)	≤1%
Linear Range	>3 orders of magnitude
Gas Flow Control	Dual mass flow controllers
Gas Flow Control Accuracy	Up to 1 mL/min
Optical System	Non-dispersive optical system
Atomizer	Shielded quartz atomizer
Communication Interface	USB 2.0
Flame Monitoring	Real-time observation system
Software	Windows-based atomic fluorescence software workstation
Software Functions	Automatic qualitative/quantitative analysis, calculation, standard curve generation, report generation

Applications
• Trace and ultra-trace analysis of arsenic, mercury, antimony, bismuth, selenium, tellurium, cadmium, germanium, lead, tin, and zinc.
• Environmental monitoring and analysis of water and wastewater.
• Food and agricultural product safety testing.
• Pharmaceutical and biological sample analysis.
• Geological, mineral, and chemical laboratory analysis.
• Quality control and routine elemental analysis in industrial laboratories.

Applicable Standards
The supplied specifications do not identify a specific national or international testing standard. Applicable analytical methods should be selected according to the sample matrix, target element, and laboratory requirements.

Comparison

Feature	AFS200T	AFS200S
Product Positioning	Technical model	Scientific model
Injection System	Dual peristaltic-pump intermittent flow	Syringe pump + peristaltic pump
Injection Modes	Peristaltic-pump injection	Syringe-pump and peristaltic-pump modes
Injection Accuracy	Stable routine injection	Higher syringe-pump injection accuracy
Single Measurement Time	—	<40 s
Gas Flow Control	Dual mass flow controllers	Dual mass flow controllers
Gas Flow Control Accuracy	Up to 1 mL/min	Up to 1 mL/min
Detection Limit, As/Se/Pb/Bi/Sb/Te/Sn/Hg	≤0.01 μg/L	<0.01 μg/L
Detection Limit, Cold-Vapor Hg/Cd	≤0.001 μg/L	<0.001 μg/L
Precision (RSD)	≤1%	<1%
Typical Positioning	Routine technical analysis and laboratory testing	Research-oriented analysis requiring flexible injection

The AFS200T is better suited to routine trace-element testing with a simple and durable injection configuration, while the AFS200S provides additional syringe-pump functionality for laboratories requiring greater injection flexibility and faster reaction response.

FAQ
Q1: What elements can the AFS200T measure?
The AFS200T can analyze 11 elements: As, Sb, Bi, Hg, Se, Te, Pb, Sn, Ge, Zn, and Cd.
Q2: What is the detection limit of the AFS200T?
Detection limits are ≤0.01 μg/L for As, Se, Pb, Bi, Sb, Te, Sn, and Hg; ≤0.001 μg/L for cold-vapor Hg and Cd; ≤1.0 μg/L for Zn; and ≤0.05 μg/L for Ge.
Q3: Can the AFS200T analyze two elements at the same time?
Yes. Its dual-channel design supports simultaneous analysis of two elements. Single-channel enhanced operation is also available when higher sensitivity is required.
Q4: What injection system does the AFS200T use?
The AFS200T uses a dual peristaltic-pump intermittent-flow injection system, providing stable sample introduction and convenient operation and maintenance.
Q5: What is the difference between AFS200T and AFS200S?
The main difference is the injection system. The AFS200T uses dual peristaltic pumps, while the AFS200S combines a syringe pump with a peristaltic pump and supports two injection modes.
Q6: Does the instrument provide automatic gas-flow control?
Yes. The AFS200T uses dual mass flow controllers for automatic gas-flow regulation, with control accuracy up to 1 mL/min and abnormal-condition diagnosis.
Q7: Does the AFS200T require manual flame observation?
No. It incorporates a real-time flame observation system, allowing users to monitor the flame during measurement without operating a conventional observation window.
Q8: What software functions are included?
The software supports Chinese/English Windows operation, automatic qualitative and quantitative analysis, standard curve processing, sample concentration calculation, data management, and automatic test report generation.
Q9: What types of laboratories can use the AFS200T?
It is suitable for environmental, food, agricultural, pharmaceutical, chemical, geological, industrial, and other laboratories requiring trace or ultra-trace elemental analysis.
