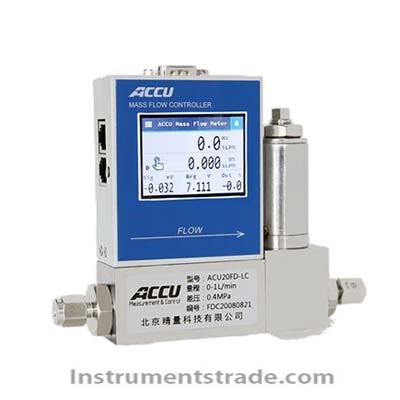

ACU20FD-L High-precision Small-range Mass Flow Controller

Product ID：LLCL037

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberACU20FD-L

Brand NameBJJINGLIANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ACU20FD-L High-precision Small-range Mass Flow Controller
Introduction:
The ACU20FD digital mass flowmeter consists of a mass flow sensor, a laminar flow stratification component, a flow controller regulating valve, and an amplification control circuit. It utilizes digital signal input and output and features short warm-up time, low zero drift, and high reliability.
Product application areas:
Vacuum; Coating; Solar Energy; Semiconductor; Petroleum and Petrochemical; Coal Metallurgy; Gas Production and Distribution; environment protection Various instrumental analyses
Features:
1. Thermal principle, higher accuracy, faster response, with Ethernet port
2. Tubular flow distribution, less prone to blockage
3. Applicable to various low and high pressure pipelines
4. Short preheating time, small zero drift, high reliability
5. Analog input/output can use secondary meters or flow computers to control and display flow
Technical parameters:

Product Model	ACU20FD-L
measurement range	2SCCM～30SLM
Measurement and control range	Flow meter range ratio 100:1 Controller range ratio 50:1
accuracy	±0.5%F.S
linear	±0.25%F.S
repeatability accuracy	±0.2%F.S
response time	Flowmeter: <0.1s
response time	Flow controller: <0.2s
digital quantity	RS232/485, MODBUS protocol
analog quantity	0~5V, 4-20mA, 1~5V
power supply	±15VDC，24VDC
Operating Temperature	0～50℃
work pressure	Operating pressure drop: <0.01 MPa
Maximum withstand voltage	3MPa/10MPa
electrical connection	DB9 hole
leak rate	1×10-9Pa m3/S
temperature coefficient	±0.025%F.S/℃
Base material	stainless steel
Sealing material	Fluororubber, chloroprene rubber, nitrile rubber
joint	φ3，φ6，1/8"，1/4"
