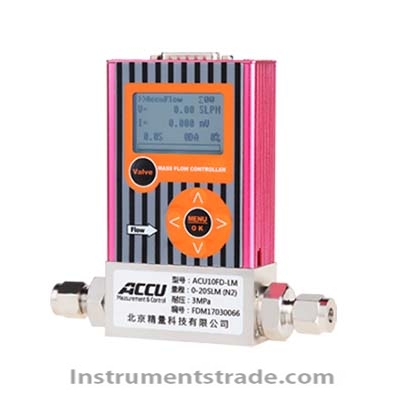

ACU10FD-LM digital mass flowmeter

Product ID：LLCL033

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberACU10FD-LM

Brand NameBJJINGLIANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ACU10FD-LM digital mass flowmeter
Introduction:
The ACU10FD digital mass flowmeter consists of a mass flow sensor, laminar flow stratification component, flow controller regulating valve, and amplification control circuit. It adopts digital signal input and output and features short warm-up time, small zero drift, and high reliability.
The ACU10FD mass flowmeter/mass flow controller utilizes the principle of calorimetry based on temperature difference before and after heat transfer through a capillary tube to measure the mass flow of gas, which is unaffected by temperature and pressure. The flow signal measured by the sensor is amplified and then compared with a set voltage. The resulting difference is used to drive and control the regulating valve, achieving closed-loop control of the flow through the channel to match the set flow rate. The product is applied in various industries such as glass; solar energy; atmospheric monitoring; industrial manufacturing; petroleum and petrochemical; coal metallurgy; gas production and distribution; environmental protection, as well as various instrumental analyses.
Features:
1. Thermal principle, fast response, high accuracy
2. Tubular flow distribution, less prone to clogging
3. Suitable for various low and high pressure pipelines
4. Short preheating time, small zero drift, high reliability
5. Digital input/output can use secondary meters or flow computers to control and display flow
Technical parameters:

measurement range	2SCCM～30SLM
Measurement and control range	Range ratio 100:1
accuracy	±1.0%F.S
linear	±0.5%F.S
repeatability accuracy	±0.2%F.S
response time	<0.8s
digital quantity	RS232/485, MODBUS protocol
analog quantity	0~5V, 4-20mA, 1~5V
power supply	±15VDC，24VDC
Operating Temperature	0～50℃
work pressure	Operating pressure drop: <0.01 MPa
Maximum withstand voltage	3MPa/10MPa
electrical connection	DB15 hole
leak rate	1×10-9Pa m3/S
temperature coefficient	±0.025%F.S/℃
Base material	stainless steel
Sealing material	Fluororubber, chloroprene rubber, nitrile rubber
joint	φ3，φ6，1/8"，1/4"
