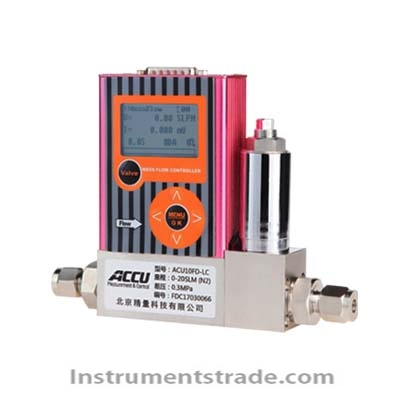

ACU10FD-LC digital mass flow controller

Product ID：LLCL034

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberACU10FD-LC

Brand NameBJJINGLIANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ACU10FD-LC digital mass flow controller
Introduction:
The ACU10FD digital mass flow controller consists of a mass flow sensor, a laminar flow stratification component, a flow controller regulating valve, and an amplification control circuit. It utilizes digital signal input and output and features short warm-up time, low zero drift, and high reliability.
The product is applied in various industries such as glass, solar energy, atmospheric monitoring, industrial manufacturing, petroleum and petrochemical, coal metallurgy, gas production and distribution, environmental protection, as well as various instrumental analyses.
Features:
1. Thermal principle, fast response, high accuracy
2. Tubular flow distribution, less prone to blockage
3. Suitable for various low and high pressure pipelines
4. Short preheating time, small zero drift, high reliability
5. Digital input/output allows for flow control and display using secondary meters or flow computers
Technical parameters:

measurement range	2SCCM～30SLM
Measurement and control range	Range ratio 50:1
accuracy	±1.0%F.S
linear	±0.5%F.S
repeatability accuracy	±0.2%F.S
response time	<2s
digital quantity	RS232/485, MODBUS protocol
analog quantity	0~5V, 4-20mA, 1~5V
power supply	±15VDC，24VDC
Operating Temperature	0～50℃
work pressure	Operating pressure difference: 0.05~0.5Mpa
Maximum withstand voltage	3MPa/10MPa
electrical connection	DB15 hole
leak rate	1×10-9Pa m3/S
temperature coefficient	±0.025%F.S/℃
Base material	stainless steel
Sealing material	Fluororubber, chloroprene rubber, nitrile rubber
joint	φ3，φ6，1/8"，1/4"

ACU10FD-LC digital mass flow controller
Introduction:
The ACU10FD digital mass flow controller consists of a mass flow sensor, a laminar flow stratification component, a flow controller regulating valve, and an amplification control circuit. It utilizes digital signal input and output and features short warm-up time, low zero drift, and high reliability.
The product is applied in various industries such as glass, solar energy, atmospheric monitoring, industrial manufacturing, petroleum and petrochemical, coal metallurgy, gas production and distribution, environmental protection, as well as various instrumental analyses.
