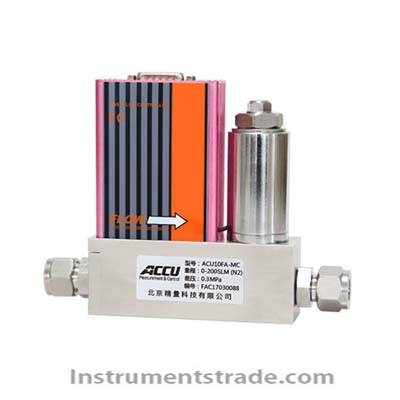

ACU10FA-MC Analog Mass Flow Controller

Product ID：LLCL032

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberACU10FA-MC

Brand NameBJJINGLIANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ACU10FA-MC Analog Mass Flow Controller
Introduction:
The ACU10FA mass flow controller consists of components such as a mass flow sensor, laminar flow stratification component, flow controller regulating valve, and amplification control circuit. It is constructed by utilizing the heat conduction distribution effect, where the flow of fluid transfers heat to change the temperature distribution on the wall of the measuring capillary.
The ACU10FA employs the principle of temperature difference calorimetry before and after heat transfer through the capillary to measure the mass flow of gas, which is unaffected by temperature and pressure. The flow signal measured by the sensor is amplified, then compared with a set voltage, and the resulting difference is used to drive the control regulating valve. The flow through the channel is closed-loop controlled to match the set flow rate.
Features:
1. Thermal principle, fast response, high accuracy
2. Tubular flow distribution, less prone to blockage
3. Applicable to various low and high pressure pipelines
4. Short preheating time, small zero drift, high reliability
5. Analog input/output, allowing the use of secondary meters or flow computers for flow control and display
Technical Specifications:

measurement range	30SLM～150SLM
accuracy	±1.0%F.S
accuracy	Temperature: ±1℃
linear	±0.5%F.S
repeatability accuracy	±0.2%F.S
response time	<1.5s
analog quantity	0～5V，4～20mA
power supply	±15VDC，24VDC
Operating Temperature	0～50℃
work pressure	Operating pressure drop: <30Kpa
Maximum withstand voltage	3MPa/10MPa
electrical connection	DB9 hole
leak rate	1×10-9Pa m³/S
temperature coefficient	±0.015%F.S/℃
Base material	stainless steel
Sealing material	Fluororubber, chloroprene rubber, nitrile rubber
joint	φ8，φ10，φ12
