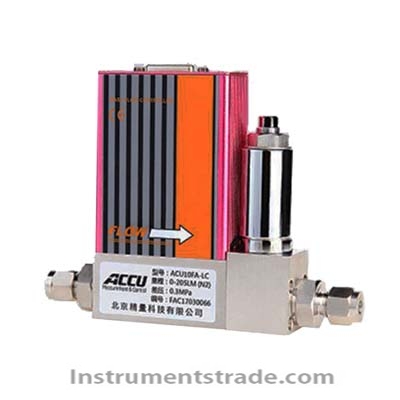

ACU10FA-LC Analog Mass Flow Controller

Product ID：LLCL031

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberACU10FA-LC

Brand NameBJJINGLIANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ACU10FA-LC Analog Mass Flow Controller
Introduction:
The ACU10FA analog mass flow controller boasts fast response and high accuracy. With a wide control range spanning from 5 SCCM to 30 SLM, it can measure and regulate flow rates as low as 1 SCCM, making it ideal for controlling very small flow rates. The working principle of the ACU10FA mass flow controller involves measuring the mass flow of gas using the calorimetric method based on the temperature difference before and after heat transfer through a capillary tube, which is unaffected by temperature and pressure. The flow signal measured by the sensor is amplified and then compared with a set voltage. The resulting difference is used to drive and control the regulating valve, achieving closed-loop control of the flow through the channel to match the set flow rate. This product finds applications in various industries such as glass, solar energy, atmospheric monitoring, industrial manufacturing, petroleum and petrochemical, coal metallurgy, gas production and distribution, environmental protection, as well as various instrumental analyses.
Features:
1. Thermal principle, fast response, high accuracy
2. Tubular flow distribution, less prone to blockage
3. Suitable for various low and high pressure pipelines
4. Short preheating time, small zero drift, high reliability
5. Analog input/output can use secondary meters or flow computers to control and display flow
Technical Specifications:

measurement range	5SCCM～30SLM
accuracy	±1.0%F.S
accuracy	Temperature: ±1℃
linear	±0.5%F.S
repeatability accuracy	±0.2%F.S
response time	<2s
analog quantity	0~5V, 4~20mA
power supply	±15VDC，24VDC
Operating Temperature	0～50℃
work pressure	Operating pressure difference: 0.05~0.5Mpa
Maximum withstand voltage	3MPa/10MPa
electrical connection	DB9 hole
leak rate	1×10-9Pa m³/S
temperature coefficient	±0.015%F.S/℃
Base material	stainless steel
Sealing material	Fluororubber, chloroprene rubber, nitrile rubber
joint	φ3，φ6，1/8"，1/4"
