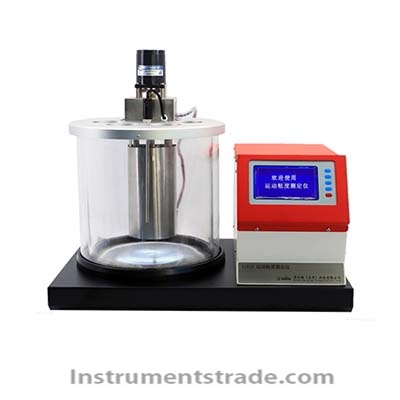

A1010 Kinematic Viscosity Tester

Product Introduction
The A1010 Kinematic Viscosity Tester is a dedicated laboratory instrument designed for measuring the kinematic viscosity of liquid petroleum products according to GB/T 265-88, Test Method for Kinematic Viscosity of Petroleum Products.
Kinematic viscosity is an important physical and chemical property for evaluating the grade and quality of petroleum products. It is particularly important in lubricating oil selection because appropriate viscosity helps mechanical equipment operate reliably under working conditions.
The A1010 automatically measures the specimen flow time through the capillary and calculates the final kinematic viscosity result based on the capillary constant and measured time.

Performance Features
•   Designed according to GB/T 265-88 for petroleum product kinematic viscosity testing.
•   Computer-controlled temperature regulation, timing and constant-temperature bath.
• Double-wall cylindrical constant-temperature bath provides uniform temperature distribution.
• High-precision temperature control improves measurement stability and accuracy.
•   Chinese LCD display with menu-guided human-machine interaction.
•   Preset temperature and test-time parameters can be entered conveniently.
•   Uses solid-state relay (SSR) control technology with no mechanical contacts, operating noise or sparks.
• Stainless-steel heater and internal bath components provide good corrosion resistance and durability.
•   Ring-shaped daylight lamp provides clear illumination for easy observation of capillary flow.
•   Automatically calculates the product of the capillary constant and average test time.
•   Supports simultaneous installation of three capillary viscometers.

Working Principle
A liquid petroleum sample is introduced into a calibrated capillary viscometer and maintained at the preset test temperature in the constant-temperature bath.
Under gravity, the sample flows through the capillary, and the instrument measures the specified flow time. The kinematic viscosity is calculated from the capillary constant and measured flow time.
The A1010 provides automatic timing and calculates the final viscosity result, reducing manual calculation and improving test efficiency.

Technical Parameters

Parameter	Specification
Model	A1010
Test Property	Kinematic viscosity
Applicable Materials	Liquid petroleum products
Standard	GB/T 265-88
Measurement Range	0–800 mm²/s
Temperature Setting Range	Room temperature–99.9°C
Temperature Control Accuracy	±0.1°C
Capillary Positions	3
Heater Power	1000 W
Display	Chinese LCD
Power Supply	AC 220 V ±10%, 50 Hz
Ambient Temperature	Room temperature–35°C
Weight	25 kg

Application Scenarios
The A1010 is suitable for kinematic viscosity testing in:
•   Lubricating oil quality control
•   Petroleum product analysis
•   Petroleum refineries
•   Oil and fuel laboratories
•   Lubricant research and development
•   Petrochemical laboratories
•   Quality inspection institutions
•   University and research laboratories

Comparison with Manual Kinematic Viscosity Testing

Feature	A1010 Kinematic Viscosity Tester	Conventional Manual Setup
Temperature Control	Automatic	Manual/separate controller
Flow Timing	Automatic	Manual stopwatch
Viscosity Calculation	Automatic	Manual calculation
Capillary Positions	3	Depends on setup
Constant-Temperature Bath	Integrated	Separate equipment may be required
Temperature Display	LCD	Separate thermometer
Capillary Constant Calculation	Automatic processing	Manual
Observation Lighting	Integrated ring lamp	Depends on setup
Control System	SSR electronic control	Conventional control
Operator Workload	Low	Relatively high

FAQ
1. What does the A1010 Kinematic Viscosity Tester measure?
It measures the kinematic viscosity of liquid petroleum products.
2. Which standard does the A1010 follow?
The instrument is designed according to GB/T 265-88, Test Method for Kinematic Viscosity of Petroleum Products.
3. What is the measurement range?
The measurement range is 0–800 mm²/s.
4. What is the temperature range?
The temperature can be set from room temperature to 99.9°C, with a temperature control accuracy of ±0.1°C.
5. How many capillary viscometers can be installed?
The instrument provides positions for three capillary viscometers.
6. Does the instrument automatically calculate viscosity?
Yes. It automatically measures the flow time and calculates the final kinematic viscosity based on the capillary constant and average test time.
7. Why is kinematic viscosity important for lubricating oils?
Kinematic viscosity is an important indicator for evaluating petroleum product quality and selecting suitable lubricating oils for reliable equipment operation.
8. What type of temperature-control system does the A1010 use?
It uses a computer-controlled constant-temperature bath and SSR solid-state relay control for stable heating.
9. What applications is the A1010 suitable for?
It is suitable for petroleum, lubricating oil and petrochemical laboratories, as well as quality-control, research and inspection applications.
