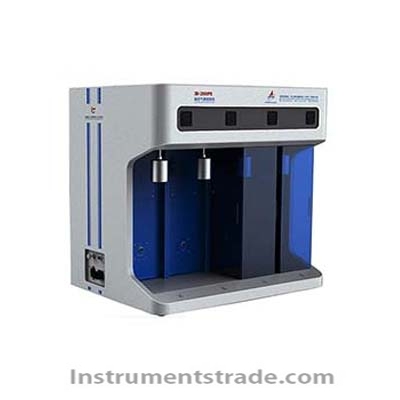

3 H- 2000PH2 automatic high pressure gas adsorption instrument for High-pressure formation research

Product ID:WBgyxf002

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model Number3 H- 2000PH2
    Brand NameYM
    Payment TermsT/T, paypal
    Features:
    1. The capacity of adsorption method with high temperature and high pressure, the stripping isotherm; Low temperature adsorption, stripping isotherm, specific surface and pore size analysis;
    2. 1 analysis station, station 1 P0, 2 degassing treatment station, a total of four;
    3. The pressure range: from high vacuum to the highest 200 bar. Equipped with imported high vacuum pabs 0-1000 torr and maximum pressure of 0-200 bar double pressure sensor;
    4. The temperature range from 196 ℃ to 196 ℃;
    5. Equipped with 3 l long heat preservation liquid nitrogen dewar provide constant temperature bath at low temperature; Equipped with room temperature to 500 ℃ heating furnace with high temperature constant temperature program; The other optional constant temperature water bath, constant temperature oil bath;
    6. Test gas, CH4, N2 and H2, CO2, CO, Ar, Kr, etc.
    7. All imported 316 stainless steel high pressure pneumatic valve; Automatic high pressure gas adsorption instrument
    8. All stainless steel gas path system, all stainless steel trachea, joints, USES the VCR hard-wired, stainless steel tube sample, the system maximum 30 mpa pressure;
    9. 99.999% with high purity HE; Has HE grieve volume testing capabilities; With automatic program control HE temperature range of hot and cold area test functions; Can get higher accuracy;
    10. The standard 10 ml samples of stainless steel tube; 10 ml samples of quartz tube; Large volume pipe matching samples;
    11. Have independent of saturated vapor pressure (P0) test station, ensure a high accuracy cryogenic adsorption test;
    12. 2 road QiZhan off with independent temperature control, with independent timing function, can support is synchronized with the test samples of different temperature and different time degassing treatment; With "ordinary heating vacuum molecular diffusion model" and "molecular replacement model" two optional features; Molecular displacement models relative molecular diffusion efficiency more than 1 times, can save more than half of the pretreatment time, solve the problem of static method of sample preparation time before long;
    13. Bass's original hardware principle of vortex dust pollution prevention device, combined with the software anti smoke flying programs eliminate volatile sample of analysis in high vacuum boiling phenomenon, so as to avoid the volatiles pollution valve line.
    14. Bass's original liquid nitrogen level servo system, eliminate the test due to liquid nitrogen volatilization in the process of liquid nitrogen



  • Features:
    1. The capacity of adsorption method with high temperature and high pressure, the stripping isotherm; Low temperature adsorption, stripping isotherm, specific surface and pore size analysis;
    2. 1 analysis station, station 1 P0, 2 degassing treatment station, a total of four;
