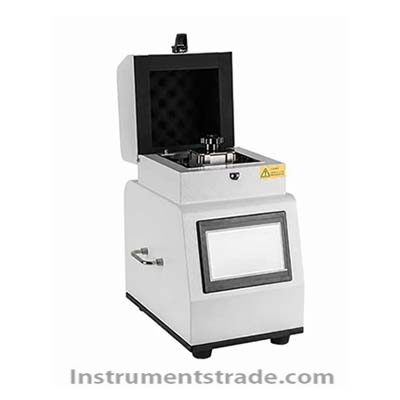

ZZYM-24 Multi-Channel Tissue Grinder

Position: Home > > Life science instrument and equipment > Biological engineering equipment > Cell breaking apparatus > ZZYM-24 Multi-Channel Tissue Grinder

ZZYM-24 Multi-Channel Tissue Grinder

Product ID：SHGCxbps102

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZZYM-24

Brand NameCSTIANCHUANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ZZYM-24 Multi-Channel Tissue Grinder
Product Overview
The ZZYM-24 Multi-Channel Tissue Grinder is a high-efficiency, multi-tube sample grinding and homogenization system designed for simultaneous processing of multiple samples. It can process up to 24 samples in a single operation, helping improve sample preparation efficiency, reduce labor costs, and minimize errors caused by manual processing.
The instrument is suitable for the disruption and homogenization of plant and animal tissues, bacteria, yeast, fungi, spores, paleontological specimens, soil, food, pharmaceutical materials, polymers, and other samples. It can be used for sample preparation before the extraction and purification of DNA, RNA, and proteins.
The ZZYM-24 supports dry grinding, wet grinding, low-temperature grinding, mixing, and homogenization, making it suitable for a wide range of laboratory sample preparation applications.

Key Features
• 24-sample high-throughput processing: Supports simultaneous grinding of up to 24 different samples, significantly improving laboratory sample processing efficiency.
• Wide sample compatibility: Suitable for plant tissues, animal tissues, microorganisms, soil, food, pharmaceutical materials, polymers, and other materials.
• Multiple grinding modes: Supports dry grinding, wet grinding, low-temperature grinding, mixing, and homogenization.
• Closed grinding process: The grinding process is fully enclosed, and samples move independently to help reduce the risk of cross-contamination.
• Direct centrifuge tube loading: Centrifuge tubes can be placed directly into the adapter, and the adapter can also be pre-cooled for low-temperature sample processing.
• Vertical oscillation: The vertical oscillation mechanism promotes thorough grinding and provides good repeatability when processing identical samples multiple times.
• Microcomputer control: An integrated program controller and large LCD screen display operating status and make parameter setting simple and convenient.
• Automatic center positioning: The fastening system features automatic center positioning to help maintain stable and consistent sample processing.
• Safety protection: A safety lock provides protection during operation, with automatic stop protection when the cover is opened.
• Low-noise operation: The silent design keeps the operating noise below 50 dB, reducing disturbance to the laboratory environment.
• Multiple adapter options: Different adapters are available to accommodate various sample tube and container sizes.
• Wide grinding media selection: Grinding balls are available in alloy steel, chromium steel, zirconia, tungsten carbide, and quartz sand.

Working Principle
The ZZYM-24 Multi-Channel Tissue Grinder uses a vertical oscillation grinding mechanism to process samples through the combined action of the adapter, grinding containers, and grinding media.
During operation, the sample containers are securely fixed in the adapter. The instrument drives the adapter to oscillate at a controlled frequency, causing the grinding balls or beads inside the containers to move rapidly and collide with the sample material.
The repeated impact, friction, compression, and shear forces generated between the grinding media and the sample rapidly break down the sample structure and promote uniform homogenization.
The closed multi-channel design allows each sample to be processed independently, helping prevent cross-contamination between samples. By selecting suitable adapters, grinding media, processing frequency, grinding time, and temperature conditions, the system can be used for dry grinding, wet grinding, low-temperature grinding, mixing, and homogenization.
The instrument can be used as a sample pretreatment step for DNA, RNA, and protein extraction and purification, as well as for the preparation of other laboratory samples.

Technical Specifications

Parameter	Specification
Model	ZZYM-24
Display	Microcomputer-controlled large LCD screen with working status display
Adapter Sample Capacity	24 × (0.2–0.5 mL) / 16 × 2 mL / 8 × (7–10) mL / 8 × 15 mL / 4 × 25 mL / 2 × 50 mL
Standard Configuration	Two optional adapters available
Homogenization Speed	10–70 Hz/s
Vibration Principle	German technology Schleifen-1 working mode
Adapter Material	PTFE or alloy steel
Grinding Modes	Wet grinding, dry grinding, low-temperature grinding
Maximum Feed Size	No fixed requirement; adjustable according to adapter
Final Particle Size	5 μm
Grinding Platforms	>2 grinding container positions
Automatic Center Positioning Fastening	Yes
Safety Lock During Operation	Full-process protection
Grinding Kit Materials	Hardened steel, PTFE (Teflon)
Power Supply	Single-phase 220 V / 50 Hz
Working Time	0 s–99 min, user adjustable
Grinding Ball Diameter	0.1–30 mm
Grinding Ball Materials	Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand
Acceleration	Reaches maximum speed within 2 s
Deceleration	Reaches low speed within 2 s
Noise Level	<50 dB
Dimensions	280 × 400 × 530 mm
Weight	40 kg

Applications
The ZZYM-24 Multi-Channel Tissue Grinder can be used for a wide range of biological, geological, food, pharmaceutical, and material sample preparation applications.
• Plant Tissue Samples: Grinding and disruption of roots, stems, leaves, flowers, fruits, and other plant tissues.
• Animal Tissue Samples: Grinding of brain, heart, lung, stomach, liver, bone, hair, and other animal tissues.
• Microbial Samples: Disruption and homogenization of bacteria, yeast, fungi, spores, and microorganisms such as E. coli.
• Soil Samples: Grinding and homogenization of soil samples for subsequent laboratory analysis.
• Food Samples: Grinding and homogenization of food materials for testing and analysis.
• Pharmaceutical Samples: Sample grinding and homogenization for pharmaceutical research and laboratory testing.
• Volatile Samples: Suitable for grinding samples such as coal, oil shale, wax products, and other relatively volatile materials.
• Polymer and Plastic Samples: Grinding of PE, PS, textiles, resins, and other polymeric materials.
• Paleontological Samples: Mechanical grinding and preparation of paleontological specimens and related materials.

Application Scenarios
The ZZYM-24 is suitable for molecular biology laboratories, biotechnology laboratories, life science research, agricultural research, food testing laboratories, pharmaceutical laboratories, microbiology laboratories, geological research, universities, and research institutes.
Typical applications include:
• DNA extraction sample preparation
• RNA extraction sample preparation
• Protein extraction sample preparation
• Plant tissue disruption
• Animal tissue homogenization
• Bacterial and fungal sample preparation
• Soil sample grinding
• Food sample pretreatment
• Pharmaceutical sample preparation
• Polymer and plastic grinding
• Low-temperature sample preparation
• High-throughput laboratory sample processing

Comparison

Feature	ZZYM-24 Multi-Channel Tissue Grinder	Conventional Manual Grinding
Sample Throughput	Up to 24 samples	Usually processed individually
Grinding Method	Controlled vertical oscillation	Manual grinding
Sample Processing	Simultaneous multi-sample processing	Sequential processing
Sample Separation	Independent closed containers	Greater potential for cross-contamination
Grinding Modes	Dry, wet, and low-temperature grinding	Depends on manual method
Sample Homogeneity	Consistent mechanical processing	More dependent on operator
Operation	Program-controlled	Manual operation
Grinding Time	0 s–99 min adjustable	Manually controlled
Safety	Safety lock and cover-opening stop protection	Depends on operator
Noise Level	<50 dB	Depends on grinding method
Labor Requirement	Reduced manual handling	Higher labor requirement
Repeatability	High consistency for repeated processing	More operator-dependent

Adapter and Sample Capacity Options
The ZZYM-24 supports different adapter configurations to accommodate a variety of sample container sizes:
• 24 × 0.2–0.5 mL
• 16 × 2 mL
• 8 × 7–10 mL
• 8 × 15 mL
• 4 × 25 mL
• 2 × 50 mL
This flexible configuration allows users to select an appropriate sample capacity according to sample volume and experimental requirements.

Frequently Asked Questions
What is the ZZYM-24 Multi-Channel Tissue Grinder used for?
The ZZYM-24 is designed for high-throughput grinding, disruption, mixing, and homogenization of biological tissues, microorganisms, soil, food, pharmaceutical materials, polymers, and other samples.
How many samples can the ZZYM-24 process simultaneously?
The maximum configuration supports 24 samples, using 24 × 0.2–0.5 mL sample positions. Other configurations include 16 × 2 mL, 8 × 7–10 mL, 8 × 15 mL, 4 × 25 mL, and 2 × 50 mL.
Can the ZZYM-24 be used for DNA, RNA, and protein extraction?
Yes. The instrument is suitable for sample disruption and homogenization before the extraction and purification of DNA, RNA, and proteins.
What types of grinding does the ZZYM-24 support?
The system supports dry grinding, wet grinding, low-temperature grinding, mixing, and homogenization.
Can the adapter be pre-cooled?
Yes. The adapter can be pre-cooled when low-temperature grinding or temperature-sensitive sample processing is required.
Does the grinding process cause cross-contamination between samples?
The grinding process is fully enclosed, and individual samples move independently in their respective containers, helping reduce the risk of cross-contamination.
What grinding media are available?
Grinding balls can be made from alloy steel, chromium steel, zirconia, tungsten carbide, and quartz sand, with diameters ranging from 0.1 to 30 mm.
What is the smallest final particle size?
The specified final particle size can reach approximately 5 μm, depending on the sample, grinding media, adapter, and operating conditions.
Is the ZZYM-24 suitable for repeated processing of identical samples?
Yes. The vertical oscillation grinding mechanism provides consistent mechanical processing, helping improve repeatability when the same type of sample is processed multiple times.
Is the ZZYM-24 noisy?
The specified noise level is less than 50 dB, making it suitable for laboratory environments where low operating noise is preferred.
What safety features does the ZZYM-24 have?
The instrument is equipped with a safety lock and cover-opening stop protection, providing protection throughout the grinding process.

Product Summary
The ZZYM-24 Multi-Channel Tissue Grinder is a high-throughput laboratory sample preparation system designed for simultaneous processing of up to 24 samples. It combines vertical oscillation, enclosed independent sample processing, programmable operation, multiple adapter configurations, and dry, wet, and low-temperature grinding capabilities.
With support for DNA, RNA, and protein sample preparation, as well as plant, animal, microbial, soil, food, pharmaceutical, polymer, and other materials, the ZZYM-24 provides an efficient and repeatable solution for high-throughput tissue grinding and laboratory homogenization.
