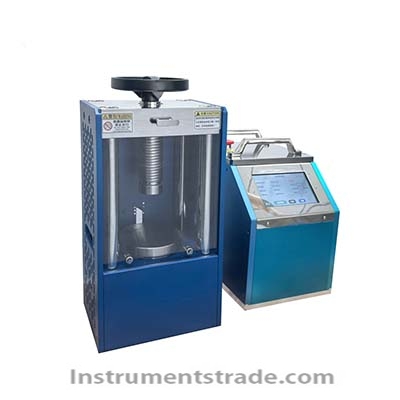

ZYP-40T Split-type Glove Box Electric Tablet Press Introduction: The advantage of this machine lies in its suitability for the tablet preparation of atmosphere-sensitive or high-purity materials (such as lithium battery materials, metal-organic frameworks, etc.). The split design places the control cabinet of the tablet press outside the glove box, reducing the space occupation and pollution within the box while maintaining a stable inert gas environment. This prevents powders (such as electrode materials, MOFs) from entering the motor, which could lead to increased friction or circuit shorting that could burn out the motor. Technical Specifications: Equipment model: FZYP-40T Pressure range: 0.5-40T Piston diameter: Φ130mm Maximum cylinder stroke: ＜50mm Pressurization method: Automatic pressurization/Slow pressurization Compression sample preparation process: automatic pressure application -- automatic pressure maintenance -- precise pressure compensation -- timed pressure relief Number of pressurization stages: 5 stages, arbitrarily settable Pressure holding time: Unlimited N seconds, with different pressure holding times settable for each segment Control panel: XNNETS 7-inch touch LCD screen (remote control optional) Touch screen function module: pressure system -- data management system -- interchange of Chinese and English interfaces, etc. (upgradable via USB) Mold pressure conversion: Real-time automatic calculation of the pressure (MPa) sustained by the sample Demolding pressure: can be set by yourself (T) Oil cylinder limit protection: automatic pressure relief when the oil cylinder rises and touches the limit switch System safety configuration: Automatically release pressure when the system pressure exceeds the safe pressure Safety protection device: bullet-proof glass door + leakage protection + emergency stop switch Equipment power supply: 220V (50Hz/60Hz) Maximum power of the device: 400W Working space: width 160×200mm Host dimensions: 260×220×700mm Control box size: 270×360×400mm Equipment weight: approximately 115kg
