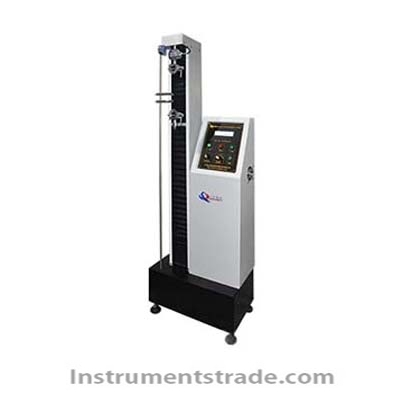

ZY6010 microcomputer tensile testing machine Introduction
ZY6010 microcomputer tensile testing machine can measure tensile strength, tearing, peeling and squeezing force of various materials; it is used for wire elongation, tensile strength test and tensile and tensile test of textile and leather.
It can measure the tensile strength, tearing, peeling, splicing force, etc. of various materials; it is used for the elongation of the wire, the tensile strength test, and the tensile and tensile test of textile and leather.
The microcomputer tensile testing machine meets the test standards of UL, CSA, CCC, VDE, GB, ASTM, DIN and JIS. Features
1. The test results are accurate;
2, resistance to physical properties. Technical Parameters
Measurement options: 10, 20, 50, 100, 200, 300kg optional.
Load resolution: 0.01kg.
Stroke (without clamp): 600~800mm optional (can be customized).
Test speed: 50~500mm/min Any adjustable, electronic digital display frequency control.
Speed accuracy: 50±0.5mm, 500±1.0mm.
Display: Display break value, direct display elongation with peak lock function.
Drive mode: Ac speed motor.
Unit conversion: Kgf / N or Kgf / Lb.
Elongation display (standard elongation device): electronic digital direct reading.
Resolution: 0.01%.
Tensile strength (kg/cm2) = fracture value (kg) / cross-sectional area of the test piece (cm2).
Dimensions (W x D x H): 45 cm x 36 cm x 175 cm.
Weight: 75kg.
Introduction
ZY6010 microcomputer tensile testing machine can measure tensile strength, tearing, peeling and squeezing force of various materials; it is used for wire elongation, tensile strength test and tensile and tensile test of textile and leather.
It can measure the tensile strength, tearing, peeling, splicing force, etc. of various materials; it is used for the elongation of the wire, the tensile strength test, and the tensile and tensile test of textile and leather.
The microcomputer tensile testing machine meets the test standards of UL, CSA, CCC, VDE, GB, ASTM, DIN and JIS.
