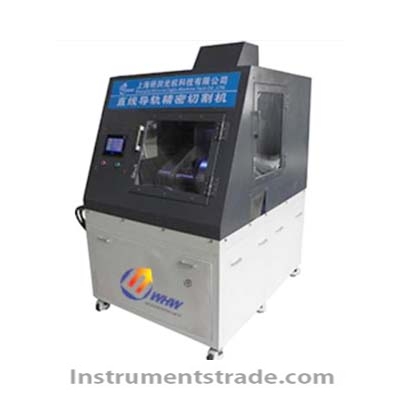

ZY-100 Guide Rail Metallographic Specimen Cutter Introduction: The ZY-100/200 series intelligent linear guide precision cutting machine is a precise, efficient, and rapid automatic cutting machine specially developed by our factory for guide rail production and processing enterprises. It adopts a color touch screen and a PLC control system (Mitsubishi, Japan) to achieve intelligent one-button automatic cutting. The cutting end face is flat and free of burns, making it an ideal cutting equipment for various types of guide rails. At the same time, it can also be used for precision cutting of other materials. Technical Specifications: Model: ZY-100 Control mode: Color touch screen, PLC control system Machine body type: Floor-standing integrated type (stainless steel cutting chamber cover) Maximum cutting size: 45X45mm (guide rail cross-section) Effective feed depth: 200mm Cutting table size: 500X300mm Specification of cutting blade: 300X2X32mm Feed distance: 0-200mm Motor power: 4.0KW (ABB motor) Supporting method: Manual clamping Water tank capacity: 120L Cutting speed: 1-300mm/min (stepless speed adjustment) Cutting progress tracking: synchronous display Cutting mode: Intelligent automatic/manual Delivery method: Three-in-one-out Cutting and repair: Automatic Online speed adjustment: 1-300mm/minute (adjustable) Reset mode: Automatic reset Spindle speed: 100-3000r/min Exhaust control: Automatic control Lighting system: 24V (LED cold light source) Power supply: 380V Overall dimensions: 1100X1200X1550mm Weight: 700KG
ZY-100 Guide Rail Metallographic Specimen Cutter Introduction: The ZY-100/200 series intelligent linear guide precision cutting machine is a precise, efficient, and rapid automatic cutting machine specially developed by our factory for guide rail production and processing enterprises. It adopts a color touch screen and a PLC control system (Mitsubishi, Japan) to achieve intelligent one-button automatic cutting. The cutting end face is flat and free of burns, making it an ideal cutting equipment for various types of guide rails. At the same time, it can also be used for precision cutting of other materials.
