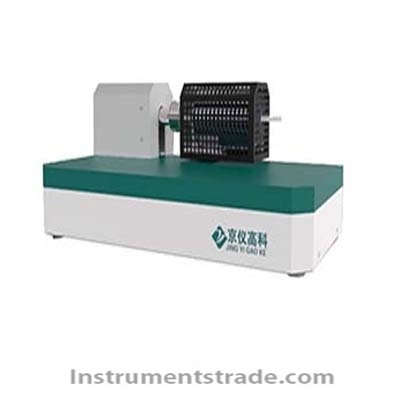

ZRP-B Thermal Dilatometer for material property research

Product ID:WLrpz026

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZRP-B
    Brand NameJINGYIGAOKE
    Payment TermsTT,PAYPAL
    ZRP-B Thermal Dilatometer

    Introduction:
       The dimensional change of the sample is measured as a function of temperature or time under a certain temperature program and the load force is close to zero. It can measure various samples such as solids, molten metals, powders, coatings, etc. ZRP-B thermal dilatometer studies the following properties of materials: linear expansion and contraction, glass transition temperature, densification and sintering process, heat treatment process optimization, softening point detection, phase transition process, additives and raw materials effects, reaction kinetics research. Product application: widely used in inorganic ceramics, metal materials, plastic polymers, building materials, coating materials, refractory materials, composite materials and other fields.
    Features:
    1. Applicable to sample linear variables, linear expansion coefficient, bulk expansion coefficient, softening temperature, glass transition temperature, density change
    2. The vertical structure of the instrument is particularly suitable for the measurement of ceramic samples that shrink more than expand
    3. Instrument integration, automatic upgrade, strong anti-interference ability, good repeatability
    4. Adopt Chinese operation interface under windows system, friendly interface, suitable for win7, win8, win10 operating system
    Technical parameter:
    Product model: ZRP-B type
    Temperature range: room temperature~1450
    Thermal expansion measurement size: 4- 6×25mm square/circle can be
    Expansion range: 1000μm
    Heating rate 0.1~100/min
    Cooling rate 0.1~40/min
    Temperature Resolution 0.1
    Dilation resolution 0.1-1um
    System measurement error ±0.1-0.5%
    Vacuum degree: 2.66×10-2Pa
    Furnace power: 2kW
    Output method: brand computer, laser printer
    Atmosphere control: optional vacuum system
  • Introduction:
       The dimensional change of the sample is measured as a function of temperature or time under a certain temperature program and the load force is close to zero. It can measure various samples such as solids, molten metals, powders, coatings, etc. ZRP-B thermal dilatometer studies the following properties of materials: linear expansion and contraction, glass transition temperature, densification and sintering process, heat treatment process optimization, softening point detection, phase transition process, additives and raw materials effects, reaction kinetics research. Product application: widely used in inorganic ceramics, metal materials, plastic polymers, building materials, coating materials, refractory materials, composite materials and other fields.
