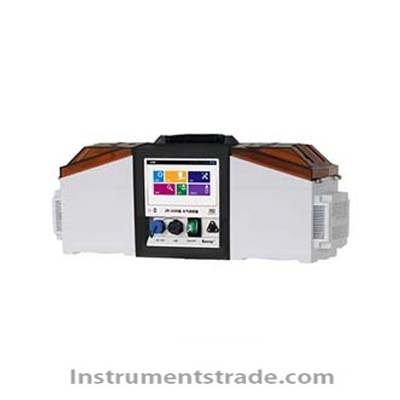

ZR-3500S four-way atmospheric sampler

Product ID:HQCYqtdq032

Price: Please inquire PDF Format
Supply Ability:70 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZR-3500S
    Brand NameQINGDAOZHONGRUI
    Payment TermsT/T, paypal
    ZR-3500S four-way atmospheric sampler
    Introduction
    ZR-3500S four-way atmospheric sampler (B type, two-way heating two-way constant temperature; C section, four-way constant temperature) can simultaneously collect four kinds of gas or two sets of parallel samples at constant temperature and constant current, suitable for monitoring toxic substances in the air. And analysis. The instrument can be widely used in environmental protection, medical and health, food industry, fermentation industry, pharmaceutical industry, agriculture and animal husbandry, industrial and mining enterprises, labor health and other related research departments.
    Executive standard
    HJ/T 375-2007 Environmental air sampler technical requirements and testing methods
    HJ/T 376-2007 24-hour constant temperature automatic continuous ambient air sampler technical requirements and testing methods
    JJG 956-2013 Atmospheric sampler verification procedure
    Features
    The whole machine is excellent in waterproof, dustproof and anti-collision performance, which can guarantee the normal work of rain, snow, dust and heavy weather;
    Built-in four sets of imported high-performance bass sampling pump to achieve four-way sampling, sampling flow and sampling time are controlled separately;
    With 7-inch color touch screen, the content is more intuitive and easier to operate;
    Built-in high-performance lithium battery, power supply time> 10h;
    Adopt high-precision, corrosion-resistant, high-humidity electronic flowmeters;
    Support constant current sampling, constant temperature sampling (constant temperature model), timing sampling, interval sampling, 24-hour continuous sampling. You can choose to sample by time or by volume;
    The constant temperature box (constant temperature type) adopts semiconductor constant temperature technology, the heating and cooling temperature can be controlled separately, the drying cylinder and the absorption bottle are built in the constant temperature box to ensure stable temperature performance;
    Support USB data export, built-in large-capacity data storage, with instantaneous data storage;
    The archive file format is available in TXT and CSV formats;
    Ambient atmospheric pressure and temperature, measurable input;
    Imported pressure sensor, maintenance-free calibration;
    The sampling process interrupts the automatic protection of the electrical data;
    Optional portable Bluetooth printer. (Built-in lithium battery)
    Technical parameters
    Flow range: (0.1~1.0) L/min
    Service life under maximum flow and resistance: >5000h
    Flowmeter accuracy: >2.5%
    Running time under maximum flow and resistance: 2-8h
    Flow stability: <5%
    Pumping pressure: >26000Pa

  • ZR-3500S four-way atmospheric sampler (B type, two-way heating two-way constant temperature; C section, four-way constant temperature) can simultaneously collect four kinds of gas or two sets of parallel samples at constant temperature and constant current, suitable for monitoring toxic substances in the air. And analysis.
