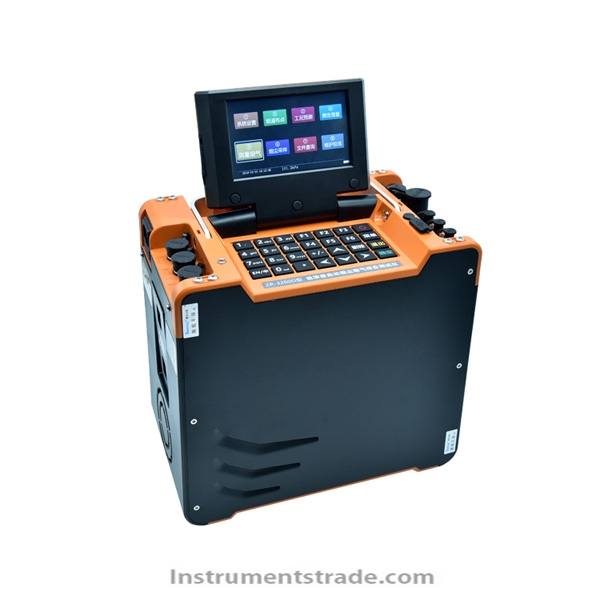

ZR-3260D Low-Concentration Automatic Flue Gas and Dust Comprehensive Tester

Product ID：HQCYyq023

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZR-3260D

Brand NameQDZHONGRUI

Payment TermsTT，PAYPAL，Alibaba.com Pay

ZR-3260D Low-Concentration Automatic Flue Gas and Dust Comprehensive Tester

Product Introduction
The ZR-3260D Low-Concentration Automatic Flue Gas and Dust Comprehensive Tester is a compact automatic emission testing instrument designed for fixed pollution sources. It is used for particulate matter sampling, including ultra-low-concentration particulate matter, measurement of toxic and hazardous gases such as SO₂ and NOx, and determination of dust removal and desulfurization efficiency.
The instrument can also measure flue gas temperature, differential pressure, static pressure, moisture content and other flue gas parameters, while calculating converted concentration and total emissions. Its compact design, automatic flow control, wireless operation and rugged construction make it suitable for demanding field emission measurements.

Key Features
• Designed for low-concentration and ultra-low-concentration particulate matter sampling.
• Supports SO₂, NOx and other toxic/hazardous gas measurements.
• Automatic CO correction of measured SO₂ concentration; correction coefficient can be modified according to interference test results.
• Sampling flow control complies with HJ/T 46 requirements.
• Built-in flue information database stores operating conditions and historical configurations.
• 5.0-inch high-brightness color touch display with wide-temperature operation and wide viewing angle.
• Supports both touchscreen and keypad operation.
• Built-in automatic drainage pump automatically removes condensate during dust and gas sampling.
• Large-capacity internal storage with support for SD cards and USB drives.
• Supports wireless control through a mobile APP, Bluetooth communication and an external Bluetooth high-speed printer.
• High-precision electronic flowmeter provides real-time temperature and pressure monitoring and automatic flow adjustment.
• Microcomputer-controlled isokinetic sampling with fast response.
• Guided operation helps users complete the sampling process efficiently.
• Color-coded Pitot tube pressure ports and connection lines simplify field operation.
• Automatic leak testing, system self-diagnosis and alarm functions.
• Gas-path buffering provides effective anti-backflow protection.
• Integrated visible dust filter and water trap improve filtration and moisture removal while protecting the gas path and sampling pump.
• Power-off memory automatically saves operating data and supports continued sampling after power recovery.
• Standard 25.9 V, 6 Ah rechargeable battery with optional backup battery input.
• Supports DC24V input and DC24V output for external power and accessories.
• Overvoltage protection above AC250V helps protect the instrument from excessive input voltage.
• Enhanced filtration, dehumidification, static-electricity and impact protection for improved durability.
• Optional wireless communication and positioning functions.
• Reserved interfaces for capacitive humidity measurement and dry/wet-bulb humidity measurement.

Working Principle
The ZR-3260D flue gas and dust tester uses a sampling system to extract representative flue gas and particulate matter from fixed pollution sources. The electronic flowmeter continuously monitors sampling conditions, while the microcomputer automatically adjusts the sampling flow to achieve isokinetic sampling.
During sampling, the instrument measures flue gas temperature, pressure and other parameters and can determine particulate matter concentration. Gas sampling modules can be configured for measurement of SO₂, NOx and other pollutants.
For SO₂ measurement, the instrument provides an optional CO interference correction function. When enabled, the measured CO concentration is automatically used to correct the SO₂ result according to the configured correction coefficient.
The instrument can further calculate parameters such as standardized concentration, dry standard flow rate and total emissions, supporting emission compliance evaluation and pollution-control equipment efficiency testing.

Technical Specifications

Parameter	Specification
Model	ZR-3260D
Product Type	Low-Concentration Automatic Flue Gas and Dust Comprehensive Tester
Main Applications	Particulate matter sampling, flue gas analysis, emission parameter measurement
Particulate Matter	Including ultra-low-concentration particulate matter
Gas Components	SO₂, NOx and other gases; optional configurations available
SO₂ Correction	Automatic CO interference correction
Sampling Flow Control	Automatic electronic flow control; complies with HJ/T 46 requirements
Sampling Method	Microcomputer-controlled isokinetic sampling
Display	5.0-inch wide-temperature high-brightness color display
Operation	Touchscreen + keypad
Data Storage	Large-capacity internal storage, SD card and USB drive support
Wireless Communication	Bluetooth; optional wireless communication
Mobile Control	Mobile APP supported
Printer	Optional Bluetooth high-speed printer
Drainage	Built-in automatic condensate drainage pump
Battery	25.9 V, 6 Ah
Battery Runtime	≥3 h at 20 L/min, -8 kPa load; ≥2 h at 30 L/min, -8 kPa load
External Power	DC24V input
Accessory Power	DC24V output
Power Supply	AC220V ±10%, 50 Hz
Operating Temperature	-20 to 45°C
Operating Humidity	0–95% RH
Safety Environment	Non-explosive environments
Positioning	Optional
Humidity Measurement	Interfaces reserved for capacitive and dry/wet-bulb methods

Applications
The ZR-3260D Automatic Flue Gas and Dust Comprehensive Tester is suitable for:
• Boiler and industrial furnace emission testing
• Fixed pollution source monitoring
• Low- and ultra-low-concentration particulate matter measurement
• Dust removal efficiency determination
• Desulfurization equipment efficiency testing
• SO₂ and NOx emission measurement
• Flue gas temperature, pressure and velocity measurement
• Flue gas moisture and excess-air coefficient measurement
• Dry standard flow and total emission calculation
• Oil fume sampling with the appropriate sampling tube
• Asphalt smoke sampling with the appropriate sampling tube
• Accuracy evaluation and calibration of continuous emission monitoring systems
• Environmental monitoring and pollution-control equipment inspection

ZR-3260D vs. Conventional Flue Gas & Dust Testers

Feature	ZR-3260D	Conventional Tester
Low-Concentration PM Sampling	Yes	Depends on model
Ultra-Low-Concentration PM	Supported	Limited on some models
Automatic Isokinetic Sampling	Yes	Depends on configuration
SO₂/NOx Measurement	Supported	Usually configuration-dependent
CO-Based SO₂ Correction	Yes	Not always available
Automatic Condensate Drainage	Yes	Usually manual or optional
Data Storage	Large-capacity + SD/USB	Usually more limited
Mobile APP Control	Supported	Often unavailable
Bluetooth Communication	Yes	Depends on model
Power-Off Data Recovery	Yes	Not always available
Field Durability	Enhanced protection	Varies
Flue Information Database	Built-in	Usually unavailable

FAQ
1. What is the ZR-3260D used for?
It is used for comprehensive testing of particulate matter and flue gas emissions from fixed pollution sources, including emission parameters and pollution-control efficiency.
2. Can the ZR-3260D measure ultra-low-concentration particulate matter?
Yes. It is specifically designed for low-concentration and ultra-low-concentration particulate matter sampling.
3. Can it measure SO₂ and NOx?
Yes. The instrument supports measurement of SO₂, NOx and other toxic or hazardous gases according to the selected configuration.
4. What is the purpose of CO correction for SO₂?
CO can interfere with SO₂ measurement under certain conditions. The automatic correction function uses measured CO concentration and a configured correction coefficient to correct the SO₂ result.
5. Does the instrument support automatic isokinetic sampling?
Yes. Its microcomputer-controlled sampling system automatically tracks the required flow conditions for isokinetic sampling.
6. Can it be used to determine dust removal efficiency?
Yes. The ZR-3260D can be used to evaluate the efficiency of dust removal equipment and, with the appropriate configuration, desulfurization equipment.
7. How is condensate handled during sampling?
A built-in automatic drainage pump removes sampling condensate, making the instrument particularly convenient for high-humidity flue gas conditions.
8. Can the instrument be operated remotely?
Yes. It supports mobile APP operation, Bluetooth communication and optional wireless communication and positioning functions.
9. What is the battery operating time?
The standard 25.9 V, 6 Ah battery provides at least 3 hours at 20 L/min with a -8 kPa load or at least 2 hours at 30 L/min with a -8 kPa load.
