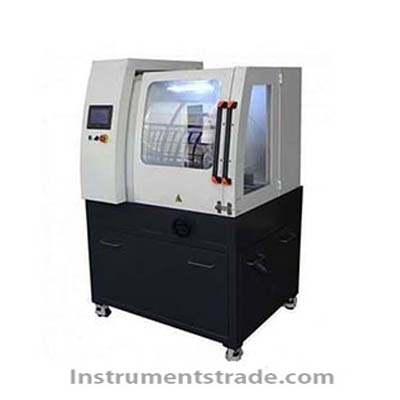

ZQ-300F automatic metallographic cutting machine Introduction: The ZQ-300F is a floor-standing straight-cut and track-type automatic metallographic cutter for cutting hard materials and large workpieces. In addition to suitable for profile cutting, it is especially suitable for the cutting of irregular parts and non-standard parts. It has many kinds of precision cutting functions such as metallographic sample cutting, slotting, thin flat sheeting and cutting, and is widely used in auto parts and casting. Sampling of workpieces such as bearings and discs. Features: 1, intuitive touch screen panel, friendly operation of the face 2, spacious and transparent cutting room, sliding door and side door with safety lock 3. The grinding wheel is vertical, the table X and Y direction are automatically moved, the x table is used for continuous cutting parallel sections, and the Y table is used for cutting ultra-deep workpieces. 4, four cutting modes: vertical cutting, layered cutting, horizontal cutting, linkage cutting 5, large capacity circulating water tank, metal impurity magnetic separator 6, the cutting room is equipped with Led lighting strips 7. Emergency stop button. Meet safety standards Technical Parameters: Cutting chamber specifications: Left and right transparent large cutting chamber for long workpieces Cutting mode: cutting, precision slicing, deep-grooving, etc. Spindle speed: 100-3000r/min Platform X moving range: Automatic movement 70mm X axis moving speed: 0-100mm/min Z axis travel: 200mm Z axis moving speed: 0-200mm/min Platform Y stroke: Automatic movement 200mm Platform Y moving speed: 0-200mm/min Control system: 8-inch color touch screen, PLC control system Cutting capacity: Maximum diameter 120mm, disc cutting size: outer diameter 250* height 120mm Cutting mode: vertical cutting, layer cutting, horizontal cutting, linkage cutting Effective feed distance: 150+200mm Completion tracking: LCD digital display (displayed from time to time) Cutting table size: stainless steel table top 650X300mm Cutting table: split double platform for lateral movement Cutting sheet specifications: (300-380) X (2-3) X32mm Cooling system: water cooled 4 channels with magnetic separation system Water tank capacity: 80L Motor power: 5.5KW (Siemens motor) Power: 380V Weight: 900KG
Introduction: The ZQ-300F is a floor-standing straight-cut and track-type automatic metallographic cutter for cutting hard materials and large workpieces. In addition to suitable for profile cutting, it is especially suitable for the cutting of irregular parts and non-standard parts. It has many kinds of precision cutting functions such as metallographic sample cutting, slotting, thin flat sheeting and cutting, and is widely used in auto parts and casting. Sampling of workpieces such as bearings and discs.
