ZPJ-4 Intelligent Tablet Tester

Position: Home > > Industry specific instrument > Drug testing instrument > Drug four determination apparatus > ZPJ-4 Intelligent Tablet Tester

ZPJ-4 Intelligent Tablet Tester

Product ID：HZYJywsy005

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZPJ-4

Brand NameTJZHONGSHIWOKE

Payment TermsTT，PAYPAL，Alibaba.com Pay

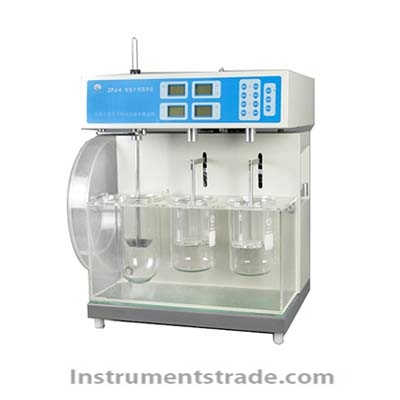

ZPJ-4 Intelligent Tablet Tester

Product Introduction
The ZPJ-4 Intelligent Tablet Tester is a multifunctional pharmaceutical testing instrument designed to measure tablet hardness, friability, disintegration time, and dissolution. Integrating four essential tablet quality tests into one system, it helps pharmaceutical manufacturers and quality control laboratories streamline routine testing and improve operational efficiency.
With automatic control, digital measurement, precise temperature regulation, and programmable test parameters, the ZPJ-4 is suitable for tablet quality evaluation and pharmaceutical laboratory applications.

Performance Features
•Four-in-one testing: Integrates hardness, friability, disintegration, and dissolution testing.
• Intelligent operation: Supports automatic control, detection, fault diagnosis, alarms, and test cycling.
• Uniform temperature control: Magnetic-pump water circulation promotes even heat distribution in the water bath.
• Programmable settings: Preset test parameters and display preset and real-time values.
• Automatic timing: Provides timed operation and automatic shutdown.
• Dissolution testing: Three vessels and three shafts arranged in a single row, with a manually tilting instrument head for convenient operation.
• Corrosion-resistant components: Dissolution baskets and paddle shafts are made of imported SUS316L stainless steel.
•Dual-position disintegration testing: Two test positions operate simultaneously with automatic timed shutdown.
• Accurate friability testing: Controls drum speed and rotation count.
• Digital hardness measurement: Uses a high-precision pressure sensor to measure and display tablet hardness.
• Automatic hardness testing: Supports continuous testing with manual tablet loading, motor-driven operation, automatic loading, data retention, and reset.

Working Principle
The ZPJ-4 uses different measurement methods for each tablet quality test:
• Hardness testing: A pressure sensor measures the force required to compress a tablet and displays the result digitally.
• Friability testing: Tablets rotate inside a controlled-speed drum for a preset number of revolutions to evaluate resistance to abrasion and mechanical damage.
• Disintegration testing: Tablets are subjected to repeated vertical movement in a controlled-temperature medium to determine disintegration time.
• Dissolution testing: Tablets are immersed in a controlled-temperature medium while rotating paddles provide agitation for dissolution evaluation.

Technical Parameters

Parameter	Specification
Dissolution Capacity	3 vessels
Temperature Control Range	20–40°C
Temperature Accuracy	±0.3°C
Speed Range	20–200 rpm
Speed Accuracy	±2 rpm
Timer Range	1–900 min
Timing Accuracy	±0.5 min
Paddle Shaft Swing	±0.5 mm
Basket Swing	±1.0 mm
Disintegration Baskets	2
Reciprocating Frequency	30–32 cycles/min
Reciprocating Stroke	55 ± 2 mm
Friability Drum Quantity	1
Drum Inner Diameter	286 mm
Drum Depth	39 mm
Drop Height	156 mm
Drum Speed	25 ± 1 rpm
Drum Revolutions	100 ± 1
Hardness Range	2–199 N
Hardness Accuracy	±1 N
Tablet Diameter Range	3–40 mm
Power Supply	220 V, 50 Hz
Power Consumption	600 W
Dimensions	520 × 380 × 470 mm

Application Scenarios
• Pharmaceutical manufacturing: Routine quality testing of tablets during production.
• Quality control laboratories: Evaluation of tablet hardness, friability, disintegration, and dissolution.
• Drug research and development: Comparative testing of tablet formulations and process conditions.
• Pharmaceutical inspection laboratories: Multi-parameter tablet quality assessment.
• University and research laboratories: Pharmaceutical formulation research and teaching.

ZPJ-4 vs. Single-Function Tablet Testing Instruments

Comparison Item	ZPJ-4 Intelligent Tablet Tester	Single-Function Instruments
Testing Functions	Hardness, friability, disintegration, dissolution	Usually one test per instrument
Equipment Integration	Four functions in one system	Requires multiple instruments
Operation	Intelligent control and preset parameters	Depends on the individual instrument
Temperature Control	Integrated dissolution temperature control	Depends on the instrument
Hardness Measurement	Digital pressure-sensor measurement	Depends on the model
Laboratory Workflow	Supports multiple tablet quality tests in one setup	Requires separate testing setups

Frequently Asked Questions (FAQ)
1. What tests can the ZPJ-4 Intelligent Tablet Tester perform?
It performs four types of tablet tests: hardness, friability, disintegration, and dissolution.
2. How many samples can be tested in the dissolution section?
The dissolution section accommodates three vessels.
3. What is the dissolution temperature range?
The specified temperature control range is 20–40°C, with an accuracy of ±0.3°C.
4. What is the dissolution speed range?
The adjustable speed range is 20–200 rpm, with a stated accuracy of ±2 rpm.
5. What is the tablet hardness measurement range?
The hardness range is 2–199 N, with a stated accuracy of ±1 N.
6. What tablet diameters can the instrument accommodate for hardness testing?
The specified tablet diameter range is 3–40 mm.
7. How many positions are available for disintegration testing?
The instrument has two disintegration baskets, allowing two positions to operate simultaneously.
8. Does the ZPJ-4 support automatic operation?
Yes. It supports automatic control, timed shutdown, fault diagnosis, alarms, and automatic cycling for applicable test functions.
9. What power supply does the ZPJ-4 require?
It operates on 220 V AC, 50 Hz, with a rated power consumption of 600 W.
