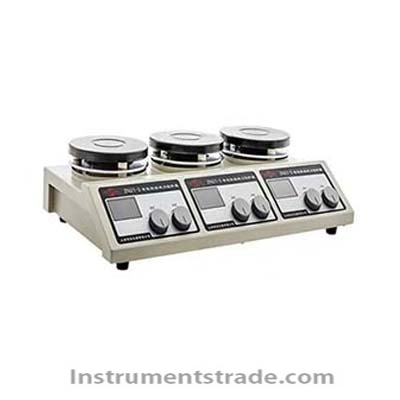

ZN21-3 three-station intelligent thermostatic magnetic stirrer

Product ID:SYHHFSjbq050

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZN21-3
    Brand NameSHANGHAISILE
    Payment TermsTT,PAYPAL
    ZN21-3 three-station intelligent thermostatic magnetic stirrer

    Introduction:
    The ZN21-3 intelligent thermostatic magnetic stirrer is a single-row three-station, each station can be individually controlled. It adopts brushless motor drive, speed display, speed control adopts closed-loop speed stabilization circuit, which can control ±1 revolution. The temperature control adopts the Pid method to automatically control the temperature. The table temperature and the temperature in the cup can be set to measure and display, and can be controlled to ±0.1 degrees. The timing can be as long as 9999 minutes.
    Technical parameter:
    Power source: Ac220V±10%
    Working method: continuous
    Speed: 502000r/min
    Motor torque: 40mN•M
    Mixing capacity (water): 2L (single station 5L)
    Heating power: 600W X3
    Table temperature setting: room temperature330
    Liquid temperature setting: room temperature~250
    Temperature control accuracy: ±0.1
    Digital display: temperature, speed display
    Timing range: 0~9999 minutes
    Sensor index number: PT100
    Heating plate size: Φ140mm black-plated stainless steel
    Dimensions: 500×300×110mm
    Weight: 8.5kg
    Accessories: one long and short meter rod, one set of temperature sensor and bracket, three sets of stir bar
  • Introduction:
    The ZN21-3 intelligent thermostatic magnetic stirrer is a single-row three-station, each station can be individually controlled. It adopts brushless motor drive, speed display, speed control adopts closed-loop speed stabilization circuit, which can control ±1 revolution. The temperature control adopts the Pid method to automatically control the temperature. The table temperature and the temperature in the cup can be set to measure and display, and can be controlled to ±0.1 degrees. The timing can be as long as 9999 minutes.
