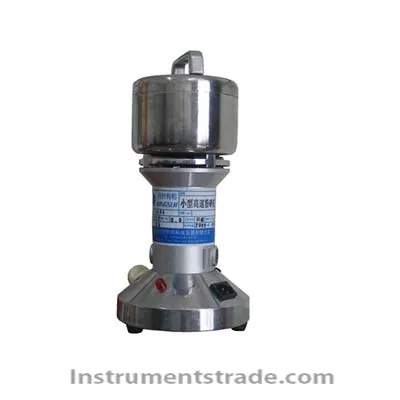

ZN-04B small high-speed grinder

Product ID:SYFSfs005

Price: Please inquire PDF Format
Supply Ability:200SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZN-04B
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
        This type of pulverizer is the use of crushing the high-speed rotation of the blade to achieve the general dry material crushing. It consists of crushing chamber, crushing blade, high-speed motor and so on. Material directly into the crushing chamber, tighten the crushing chamber cover, boot 1-3 minutes to complete the crushing. This series of crushers are intermittent crushing, crushing from 20g-400g range, so very suitable for medicine, food, chemicals, agriculture, research institutes, universities and other multi-industry laboratory applications, as well as pharmacies, pharmacies, clinics And even the use of the family.
    Features:
    (1) high fineness, speed, the series models are used small ultra-high-speed motor, a strong power to ensure the crushing fineness and speed.
    (2) small size, light weight, compact structure, no vibration, no fixed, so as to ensure that free to use in any occasion.
    (3) safety performance, no dust, loss of small, easy to clean, because the series models are intermittent crushing, so the crushing chamber are fully enclosed stainless steel tank structure, to ensure the above performance.
    (4) a wide range of applications, plant fiber, high hardness, high toughness materials, such as Chinese herbal medicines, inorganic matter, minerals, etc. can achieve a good crushing effect.
    (5) control performance, fineness can be adjusted, because at any time can be opened, shutdown operation, so by controlling the length of the crushing time to achieve the purpose of controlling fineness.
    Technical indicators:
    Model: ZN-04B
    Volume (mm): 170 × 170 × 350
    Crushing: 200g
    Power: 0.9KW
    Voltage: 220V
    Speed: 24000r / min
    Weight: 3kg
    Crushing fineness: 10 mesh -150 mesh

  • Introduction:
        This type of pulverizer is the use of crushing the high-speed rotation of the blade to achieve the general dry material crushing. It consists of crushing chamber, crushing blade, high-speed motor and so on. Material directly into the crushing chamber, tighten the crushing chamber cover, boot 1-3 minutes to complete the crushing. This series of crushers are intermittent crushing, crushing from 20g-400g range, so very suitable for medicine, food, chemicals, agriculture, research institutes, universities and other multi-industry laboratory applications, as well as pharmacies, pharmacies, clinics And even the use of the family.
