1 Sales ZKHSQL-150 ozone aging test chamber,Manufacturer
Position: Home > > Physical property test > Environmental test box > Ozone aging test chamber > ZKHSQL-150 ozone aging test chamber

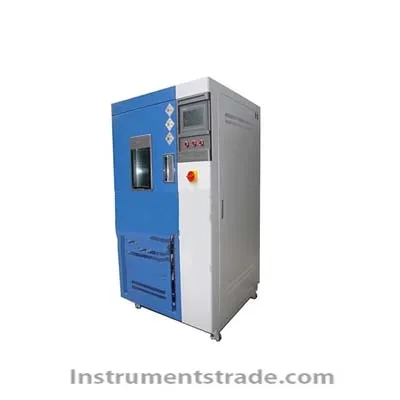

ZKHSQL-150 ozone aging test chamber

Product ID:WHcy034

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZKHSQL-150
    Brand NameZKHS
    Payment TermsT/T, paypal
    Product use:
    It can be used for rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation sheath, etc., under static tension or continuous dynamic tensile deformation, or alternately between dynamic and static tensile deformation,Exposed to airtight test chamber containing constant ozone concentration and constant temperature, the samples were detected according to the predetermined time, and the cracking or other properties of the sample surface were measured to evaluate the ozone aging resistance of rubber.
    Model and parameters:
    Product number: ZKHSQL-150
    Inner dimension D × W × Hmm:500 × 500 × 600
    Shape dimension D × W × Hmm:1150 × 920 × 1700
    Temperature range: 0: 0 70
    Humidity range: a: 40
    Temperature fluctuation: ≤ ±0.5
    Temperature uniformity: ≤ ±2
    Temperature deviation: ≤ ±1.5
    Humidity fluctuation: 2 ~ 3R.H
    Heating rate: 0.7 1.0 / min
    Cooling rate: drop from normal to 10 ≤ 20min / Unlimited
    Ozone concentration: 10 / 10 / 1000pphm (low concentration, 1 / 500 PPm (high))
    Gas flow velocity: 12 / 16mm / s
    Ozone frame: static, dynamic tensile test frame
    The sample frame rotates at 1: 360 degrees (1 r / min).
    Time set range: 0 / 9999 hours
    Power requirement: + 10%)V/50HZ three-phase five-wire


  • Product use:
    It can be used for rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation sheath, etc., under static tension or continuous dynamic tensile deformation, or alternately between dynamic and static tensile deformation,Exposed to airtight test chamber containing constant ozone concentration and constant temperature, the samples were detected according to the predetermined time, and the cracking or other properties of the sample surface were measured to evaluate the ozone aging resistance of rubber.
