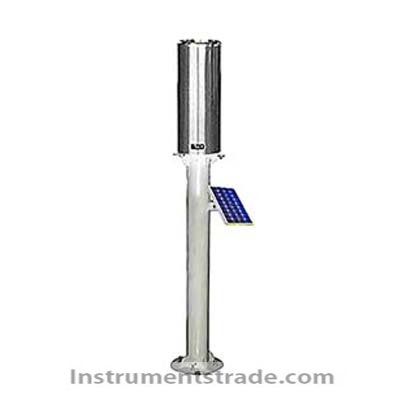

ZKGD5000-R Automatic Rainfall Monitoring System

Position: Home > > Measurement instrument > Other measuring/measurement instrument > Rain gauge > ZKGD5000-R Automatic Rainfall Monitoring System

ZKGD5000-R Automatic Rainfall Monitoring System

Product ID：CLQTylj013

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZKGD5000-R

Brand NameZHONGKEGUANGDA

Payment TermsTT，PAYPAL，Alibaba.com Pay

ZKGD5000-R Automatic Rainfall Monitoring System
Product Introduction
The ZKGD5000-R Automatic Rainfall Monitoring System is a high-precision automatic rainfall measurement and monitoring solution independently developed by Beijing Zhongke Guangda Automation Technology Co., Ltd. The system integrates a precision rainfall sensor and automatic data collector with functions including rainfall data acquisition, data processing, information query, precipitation chart generation, and alarm notification.
Designed for meteorology, flood control, agriculture, water conservancy and hydrology, environmental protection, highways, airports, and ports, the ZKGD5000-R automatic rain gauge provides continuous and unattended rainfall monitoring for fixed and remote field stations.

Key Features
• Fully automatic operation: Maintenance-free design enables long-term unattended operation in outdoor environments.
• Integrated design: The rainfall sensor and automatic data collector can be installed inside the same standard rain gauge housing, allowing convenient replacement of conventional rain gauges.
• High-resolution rainfall measurement: 0.01 mm resolution provides excellent sensitivity for measuring light rain and drizzle.
• Wide rainfall intensity range: Measures rainfall intensity from 0.1 to 9 mm/min, exceeding the stated 0.1–4 mm/min standard range.
• High measurement accuracy: Rainfall measurement error is less than ±2%, lower than the stated ±4% standard requirement.
• Accurate manual comparison: Provides highly consistent results when compared with manual rainfall measurements.
• Low maintenance: Requires substantially less routine maintenance than conventional tipping-bucket rain gauges.
• Flexible communication: Built-in RS232, RS485, GSM, and GPRS communication interfaces facilitate remote data transmission and system networking.
• High reliability: Supports stable, long-term continuous operation.
• Durable stainless-steel housing: Robust construction provides reliable operation under demanding outdoor conditions.
• Low power consumption: Static operating current is less than 1 mA, making the system suitable for remote and solar-powered monitoring stations.

Working Principle
The ZKGD5000-R automatic rainfall monitoring system uses a precision rainfall sensor to detect precipitation entering the rain collector. The rainfall information is converted into an electrical signal and processed by the integrated automatic data acquisition unit.
The system automatically collects and processes rainfall data and supports data queries, precipitation chart generation, and alarm notifications. Depending on the monitoring configuration, data can be transmitted through RS232, RS485, GSM, or GPRS to a remote monitoring center.
The integrated sensor and data acquisition design allows continuous rainfall measurement with minimal human intervention, making the system suitable for long-term unattended field deployment.

Technical Parameters

Parameter	Specification
Model	ZKGD5000-R
Product Type	Automatic Rainfall Monitoring System
Overall Height	680 ± 5 mm
Overall Diameter	232 ± 5 mm
Rain Collector Diameter	200 mm
Rainfall Resolution	0.01 mm
Rainfall Intensity Range	0.1–9 mm/min
Measurement Error	< ±2%
Power Supply	AC 220 V / DC 6–24 V / Solar Panel
Static Operating Current	<1 mA
Communication Interfaces	RS232, RS485, GSM (GPRS)
Communication Rate	1200–9600 bps
Operating Temperature	0–60°C
System Weight	<10 kg
Housing Material	Stainless Steel
Operation Mode	Automatic, Unattended

Applications
The ZKGD5000-R rainfall monitoring system is suitable for a wide range of rainfall and precipitation monitoring applications:
• Meteorology: Automatic precipitation monitoring and weather station deployment.
• Flood control: Rainfall data collection for flood warning and disaster prevention.
• Water conservancy and hydrology: Monitoring rainfall around rivers, reservoirs, drainage systems, and hydrological stations.
• Agriculture: Rainfall monitoring for irrigation planning and crop water management.
• Environmental protection: Long-term precipitation data collection and environmental research.
• Highways: Rainfall monitoring for road weather and transportation safety.
• Airports and ports: Local precipitation monitoring for weather-related operational management.
• Remote monitoring networks: Automated rainfall data transmission through RS232, RS485, GSM, or GPRS.

ZKGD5000-R vs. Conventional Tipping-Bucket Rain Gauge

Feature	ZKGD5000-R	Conventional Tipping-Bucket Rain Gauge
Rainfall Resolution	0.01 mm	Typically lower
Specified Measurement Error	< ±2%	Typically around ±4%
Light Rain Measurement	High sensitivity	Relatively limited
Rainfall Intensity Range	0.1–9 mm/min	Typically narrower
Operation	Fully automatic	Automatic
Maintenance	Minimal	Regular inspection and cleaning generally required
Communication	RS232/RS485/GSM/GPRS	Depends on configuration
Power Options	AC/DC/Solar	Depends on configuration
Outdoor Deployment	Long-term continuous operation	Requires appropriate maintenance
System Integration	Sensor + data acquisition integrated	Often requires separate equipment

Why Choose ZKGD5000-R?
The ZKGD5000-R Automatic Rainfall Monitoring System integrates precision rainfall sensing, automatic data acquisition, data processing, communication, precipitation chart generation, and alarm functions into a compact monitoring solution.
With 0.01 mm resolution, <±2% measurement error, 0.1–9 mm/min rainfall intensity measurement, low power consumption, multiple communication interfaces, and durable stainless-steel construction, it is particularly suitable for unattended rainfall monitoring stations and remote hydrological networks where reliable precipitation data is essential.

FAQ
1. What is the ZKGD5000-R Automatic Rainfall Monitoring System?
It is an automatic precipitation monitoring system designed for continuous rainfall measurement and data acquisition in meteorology, hydrology, flood control, agriculture, environmental protection, transportation, airports, and ports.
2. What is the rainfall measurement resolution?
The specified rainfall resolution is 0.01 mm, enabling sensitive measurement of light rain and drizzle.
3. What rainfall intensity range can it measure?
The system supports a rainfall intensity range of 0.1–9 mm/min.
4. What is the measurement error?
The specified rainfall measurement error is less than ±2%.
5. Does the system require manual operation?
No. The ZKGD5000-R is designed for fully automatic and unattended operation, making it suitable for long-term outdoor monitoring.
6. What communication interfaces are supported?
The system supports RS232, RS485, GSM, and GPRS, providing flexible options for remote rainfall data transmission and network integration.
7. Can the rainfall monitoring system use solar power?
Yes. The ZKGD5000-R supports AC 220 V, DC 6–24 V, and solar panel power supplies.
8. What is the operating temperature range?
The specified operating temperature range is 0°C to 60°C.
9. Is the ZKGD5000-R suitable for remote outdoor monitoring?
Yes. Its low power consumption, stainless-steel housing, automatic operation, and GSM/GPRS communication make it suitable for remote and long-term outdoor rainfall monitoring.
10. What is the overall size of the rainfall monitoring system?
The system is approximately 680 ± 5 mm high and 232 ± 5 mm in diameter, with a 200 mm rain collector diameter.
