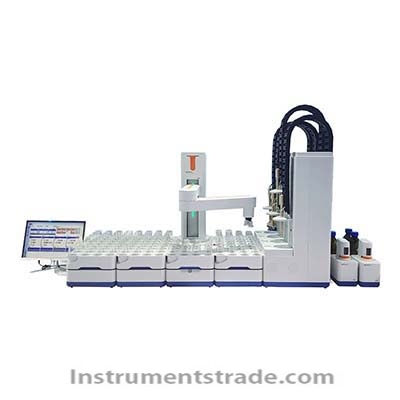

ZDR-3 Automatic Electrochemical Analysis System

Position: Home > > Environmental monitoring and analysis > Water organic pollutants > COD measuring instrument > ZDR-3 Automatic Electrochemical Analysis System

ZDR-3 Automatic Electrochemical Analysis System

Product ID：HSYJcodx073

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZDR-3

Brand NameSHYIDIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

ZDR-3 Automatic Electrochemical Analysis System
Introduction:
This product has a modular design, multiple measurement units for pH, ions, conductance, and dissolved oxygen are optional and automatically identified; Four-channel design, supports parallel measurement, can realize fully automatic injection of 112 samples, code scanning, sampling, analysis, cleaning, and automatic drainage, standardize the test process, avoid the influence of human operating factors, and easily realize efficient analysis of large batches of samples
Features:
1 Modular design
2 Supporting SR-2 automatic sampling robot
3 Use intelligent manipulator to flexibly realize automatic grasping, placement and lid uncovering of sample cups
4 The sample tray adopts modular design, which can be freely selected according to the number of samples, and supports up to 112 bits
5 Automatic identification of sample tray, accurate and efficient
6 Adopt digital electrodes and built-in intelligent chips to automatically record and store electrode-related information
7 syringe pump unit can realize dilution and liquid addition functions
8 Solvent manager unit can realize liquid shortage alarm function
Technical parameters:

model		ZDR-3
pH/pX measurement unit
pH/pX level		Grade 0.001
mV	scope	(-2000.00 ~ 2000.00) mV
	Minimum resolution	0.01 mV
	Indication error of electronic unit	± 0.03% or ± 0.1 mV
pH	scope	(-2.000 ~ 20.000) pH
	Minimum resolution	0.001 pH
	Indication error of electronic unit	± 0. 002 pH
pX	scope	(-2.000 ~ 20.000) pX
	Minimum resolution	0.001 pX
	Indication error of electronic unit	PXI: ± 0. 002 pX, pXII: ± 0. 005 pX
Ion concentration	scope	(1.000 e-9 ~ 9.999 e+9), optional units μg/L, mg/L, g/L, mol/L, mmol/L, ppm, ppb
	Minimum resolution	4 significant digits
	Indication error of electronic unit	±0.3%
Temperature	scope	（-10.0～135.0）℃
	Minimum resolution	0.1℃
	Indication error of electronic unit	±0.1℃
	Instrument indication error	± 0. 3 ℃ (0.0 ℃ ~ 60.0 ℃), ± 1. 0 ℃ (other ranges)
Two-ring conductivity measuring unit
Conductivity level	Grade 0.5
Electrical conductivity	scope	0.000 μS/cm ~ 3000mS/cm
	Minimum resolution	0.001 μS/cm, automatically switching according to range
	Electronic unit reference error	± 0.5% (FS)
Resistivity	scope	5.00 Ω · cm ~ 100.0 MΩ · cm
	Minimum resolution	0.01 Ω · cm, automatic switching according to measuring range
	Electronic unit reference error	± 0.5% (FS)
TDS	scope	0.000 mg/L ~ 1000g/L
	Minimum resolution	0.001 mg/L, automatically switching according to range
	Electronic unit reference error	± 0.5% (FS)
Salinity	scope	（0.00～8.00）%
	Minimum resolution	0.01%
	Electronic unit reference error	±0.1%
Four-ring conductivity measuring unit
Conductivity level	Grade 1.5
Electrical conductivity	scope	50.0 μS/cm ~ 3000mS/cm
	Minimum resolution	0.001 μS/cm, automatically switching according to range
	Electronic unit reference error	± 1.5% (FS)
Resistivity	scope	5.00 Ω · cm ~ 20.0 kΩ · cm
	Minimum resolution	0.01 Ω · cm, automatic switching according to measuring range
	Electronic unit reference error	± 1.5% (FS)
TDS	scope	25.0 mg/L ~ 1000g/L
	Minimum resolution	0.001 mg/L, automatically switching according to range
	Electronic unit reference error	± 1.5% (FS)
Salinity	scope	（0.00～8.00）%
	Minimum resolution	0.01%
	Electronic unit reference error	±0.2%
Dissolved oxygen measurement unit
Dissolved oxygen	scope	(0.00 ~ 20.00) mg/L
	Minimum resolution	0.01 mg/L
	Indication error of electronic unit	± 0. 10 mg/L
	Instrument indication error	± 0. 30 mg/L
Saturation degree	scope	（0.0～200.0）%
	Minimum resolution	0.10%
	Indication error of electronic unit	±2.0%
	Instrument indication error	±10.0%

Introduction:
This product has a modular design, multiple measurement units for pH, ions, conductance, and dissolved oxygen are optional and automatically identified; Four-channel design, supports parallel measurement, can realize fully automatic injection of 112 samples, code scanning, sampling, analysis, cleaning, and automatic drainage, standardize the test process, avoid the influence of human operating factors, and easily realize efficient analysis of large batches of samples
