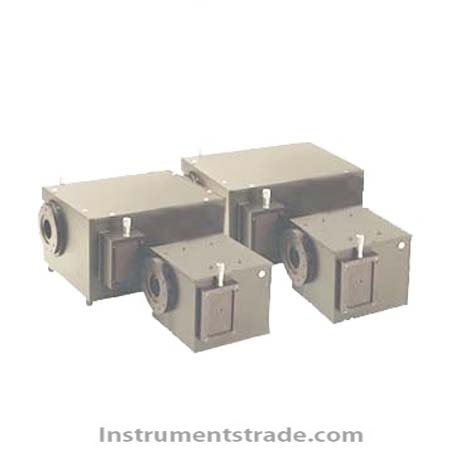

ZDG-30 Grating Monochromator

Product Introduction
The ZDG-30 Grating Monochromator is a precision optical instrument designed for qualitative and quantitative spectral analysis. It is suitable for investigating light source characteristics, solution concentrations, photochemical effects, and the optical properties of transparent materials.
Equipped with a precision sine mechanism and stepper motor control, the ZDG-30 supports automatic wavelength scanning and reliable wavelength selection. It is widely used in physics, chemistry, metallurgy, materials science, construction, environmental protection, pharmaceutical research, industrial testing, and education.

Performance Features
• High-Precision Wavelength Selection: A sine mechanism provides accurate wavelength positioning and good repeatability.
• Automatic Spectral Scanning: A stepper motor and controller enable automated wavelength scanning.
• Digital Wavelength Display: A five-digit digital display provides real-time wavelength readings.
• User-Friendly Controller: Integrated control functions simplify operation and wavelength adjustment.
• Flexible Spectral Coverage: The standard wavelength range is 330–900 nm, with alternative grating configurations available for selected bands from 220 nm to 20 μm.
• Compact Design: Separate monochromator and controller units support convenient laboratory installation.

Working Principle
The ZDG-30 uses a diffraction grating to disperse incident light into its component wavelengths. By rotating the grating through a precision sine mechanism, the instrument selects the required wavelength at the exit slit. A stepper motor controlled by the electronic controller enables automatic wavelength scanning, supporting spectral measurements and optical analysis.

Technical Parameters

Parameter	Specification
Model	ZDG-30
Focal Length	300 mm
Standard Wavelength Range	330–900 nm
Extended Spectral Coverage	Selected bands from 220 nm to 20 μm, depending on grating configuration
Wavelength Accuracy	±0.2 nm (1200 lines/mm grating)
Wavelength Repeatability	0.1 nm (1200 lines/mm grating)
Resolution	≤0.1 nm (1200 lines/mm grating; half-width method according to the applicable national standard)
Stray Light	≤1 × 10⁻³, measured with a He-Ne laser at 632.8 ± 8 nm
Wavelength Display	Five-digit digital display
Display Range	00000–99999 Å
Monochromator Dimensions	380 × 260 × 195 mm
Controller Dimensions	350 × 300 × 135 mm

Wavelength accuracy, repeatability, and resolution specifications are based on a 1200 lines/mm grating. Extended spectral coverage depends on the selected grating.

Application Scenarios
• Physics Laboratories: Light source characterization and optical experiments.
• Chemistry Laboratories: Spectral analysis and solution concentration studies.
• Materials Science: Investigation of the optical properties of transparent materials.
• Environmental Testing: Optical measurement and spectral research.
• Pharmaceutical Research: Laboratory spectroscopy and optical analysis.
• Industrial Quality Control: Spectral inspection of materials and optical components.
• Education and Research: Spectroscopy demonstrations, experiments, and scientific investigations.

ZDG-30 vs. General Optical Monochromators

Comparison	ZDG-30 Grating Monochromator	General Manual Monochromator
Wavelength Adjustment	Stepper motor controlled	Often manual
Spectral Scanning	Automatic	Depends on configuration
Wavelength Accuracy	±0.2 nm with specified grating	Model-dependent
Wavelength Repeatability	0.1 nm with specified grating	Model-dependent
Digital Display	Five-digit display	Depends on configuration
Grating Options	Configurable for selected spectral bands	Depends on model
Typical Applications	Research, laboratory testing, education	General optical experiments

Frequently Asked Questions (FAQ)
Q1: What is the ZDG-30 Grating Monochromator used for?
It selects specific wavelengths for spectral analysis, optical experiments, and qualitative or quantitative measurements.
Q2: What is the standard wavelength range?
The standard range is 330–900 nm.
Q3: Can the ZDG-30 cover wavelengths outside the standard range?
Yes. Alternative gratings can extend coverage to selected spectral bands within 220 nm to 20 μm, depending on the configuration.
Q4: What is its wavelength accuracy?
The specified wavelength accuracy is ±0.2 nm when using a 1200 lines/mm grating.
Q5: Does it support automatic wavelength scanning?
Yes. A stepper motor and electronic controller enable automatic spectral scanning.
Q6: What is the wavelength resolution?
The specified resolution is ≤0.1 nm with a 1200 lines/mm grating, measured using the specified half-width method.
Q7: Which industries use the ZDG-30?
It is suitable for physics, chemistry, metallurgy, materials science, environmental protection, pharmaceuticals, industrial testing, and education.
Q8: What are the dimensions of the instrument?
The monochromator measures 380 × 260 × 195 mm, while the controller measures 350 × 300 × 135 mm.
