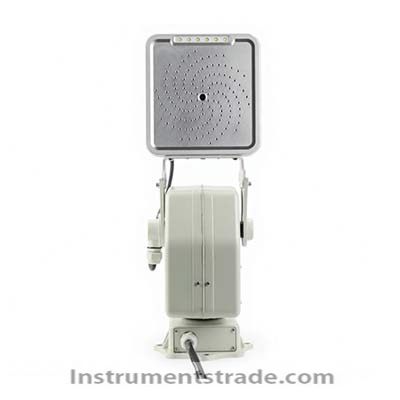

YT2002 Online Acoustic Imaging System Introduction: The YT2002 online acoustic imaging device utilizes a microphone array and a reliable sound source localization algorithm to capture sound wave signals emitted by the equipment, enabling precise localization and identification of abnormal sound sources. Whether it's corona discharge or gas leakage, it can be visually presented on the screen as a sound pressure cloud map, supporting real-time dynamic monitoring and video playback. Features: 1. Main functions: Partial discharge detection, PRPD spectrum, gas leakage detection, multi-source mode 2. Covered industry sectors: electricity, energy, metallurgy and mining, oil and gas 3. Intelligent operation: It can achieve remote settings, one-click inspection, over-limit alarm, video recording, and other functions 4. Equipped with an intelligent gimbal, it can rotate horizontally 360° and vertically from -85° to 60° Technical Specifications: Array: 136-element MEMS digital microphone array Effective detection range: 0.3m~100m Effective sound pressure level range: 28 dB~120 dB Frequency range: 1 kHz~100 kHz Signal-to-noise ratio: 60 dB Measurement functions: Acoustic imaging, PRPD partial discharge mode, multi-source mode Photography function: Capable of taking photos and shooting videos Maximum power consumption: approximately 14W for a single host array Overall weight: The main unit alone weighs approximately 1.1 kg, while the main unit plus the gimbal weighs about 5.8 kg Operating temperature: -30℃~70℃ Operating humidity: 0 %RH~90 %RH Outline dimensions (mm): 180×195×35 (main unit only) Protection level: IP65
