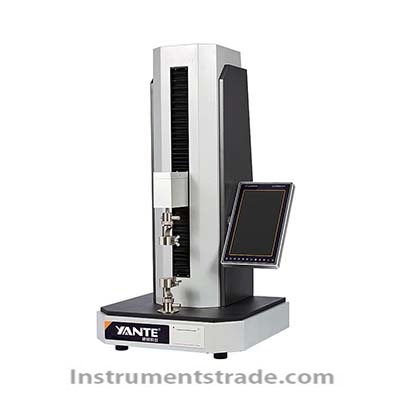

YT-LA series vertical computer tensile tester Introduction: The vertical computer tensile tester is used in industries such as paper making, plastic film production, chemical fiber manufacturing, aluminum foil production, and other production and inspection departments that require the determination of the tensile strength of objects. It can measure tensile force, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus, and peel strength of adhesive tapes. It is suitable for testing paper, paperboard, aluminum foil, aluminum-plastic tapes, plastic films, other non-metallic materials, and nonwoven fabrics. Features: 1. Closed-loop servo stepper motor, ball screw, and three guide axes ensure smooth and precise transmission. 2. Equipped with a 10-inch color LCD touch screen, it displays the stretching curve in real time. 3. The Cotex-M4 ARM processor and 24-bit analog-to-digital converter enhance the response speed of the instrument, ensuring real-time measurement. 4. Data saving function in case of sudden power failure: The data saved before power failure will be retained after powering on and testing can continue. 5. Features such as automatic reset, data memory, overload protection, and fault self-diagnosis. 6. Test data supports exporting via USB flash drive. 7. Both the system and screen software support upgrades via network or USB flash drive. 8. Supports multiple communication methods, with online software (sold separately) capable of communicating via WIFI or USB. 9. The test data can be uploaded to the cloud server, which, in conjunction with the QMS paper quality management system (purchased separately), enables real-time monitoring of paper product testing data Technical Specifications: Power supply voltage: AC (100~240)V, (50/60)Hz, 100W Working environment: Temperature (10~35)℃, relative humidity ≤85% Display: 10-inch color touch screen Measurement range: (0.15~30)N / (1~300)N / (1-500)N / (3~1000)N Resolution: 0.01N (LA30) / 0.01N (LA300) / 0.01N (LA500) / 0.1N (LA1000) Indication error: ±0.5% (measuring range: 5% to 100%) Stroke: 300mm / 1000mm (customizable) Sample width: 25mm (30mm, 50mm optional) Test speed: (1~500) mm/min (adjustable as desired) Data storage: 50 sets of test data Data export: Export data from U-disk Print: Thermal printer Communication interfaces: USB, WIFI (2.4G) Overall dimensions: 490 × 475 × 930 mm Net weight of the instrument: approximately 70kg
YT-LA series vertical computer tensile tester Introduction: The vertical computer tensile tester is used in industries such as paper making, plastic film production, chemical fiber manufacturing, aluminum foil production, and other production and inspection departments that require the determination of the tensile strength of objects. It can measure tensile force, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus, and peel strength of adhesive tapes. It is suitable for testing paper, paperboard, aluminum foil, aluminum-plastic tapes, plastic films, other non-metallic materials, and nonwoven fabrics.
