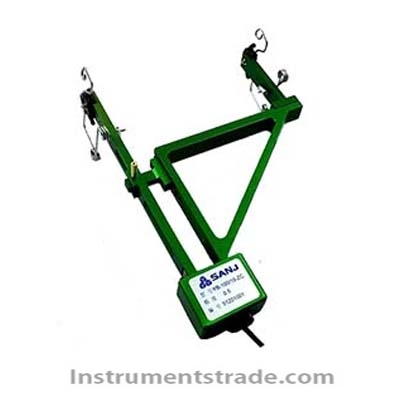

YSJ electronic extensometer

Product ID:WSHys008

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberYSJ
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    My company produces electronic adopts the principle of resistance strain type extensometer, USES the cantilever beam structure. Elastomer is made of special alloy materials, after to eliminate residual stress pulse processing. Use high quality strain gauge follow bridge connection. Has light structure, easy to use, stable and reliable, and many other features. Is the sort of strain automatic testing sensor.
    Extension points for axial (Z) and radial (J) of two kinds:
    1, Z structure form of electronic stretch gauge is mainly used for axial deformation test, such as elastic modulus E, provisions Rpxx extension strength, total Rtxx extension strength, elongation, strain hardening exponent n parameters, etc.
    2, J structure form of the electronic is mainly used in fracture mechanics and lateral extensometer or radial deformation test, such as poisson's ratio mu, plastic strain ratio r, KIC, COD and other parameters.
    Technical parameters:
    Resistance strain gauge: 350 Ω.
    For the bridge voltage value: 5 v or less (dc, ac, are available).
    The output sensitivity: about 2 mv/V.
    Gauge extensometer: age from 25 to 100 mm;
    The biggest deformation: 25 mm;
    Output connector: USB, or deserve to be according to the requirements of customers.


  • Brief introduction:
    My company produces electronic adopts the principle of resistance strain type extensometer, USES the cantilever beam structure. Elastomer is made of special alloy materials, after to eliminate residual stress pulse processing. Use high quality strain gauge follow bridge connection. Has light structure, easy to use, stable and reliable, and many other features. Is the sort of strain automatic testing sensor.
