Sales YND-BM4 multi-channel differential scanning calorimeter，Manufacturer

Position: Home > > Physical property test > Thermal analysis instrument > Differential scanning calorimeter > YND-BM4 multi-channel differential scanning calorimeter for Material change research

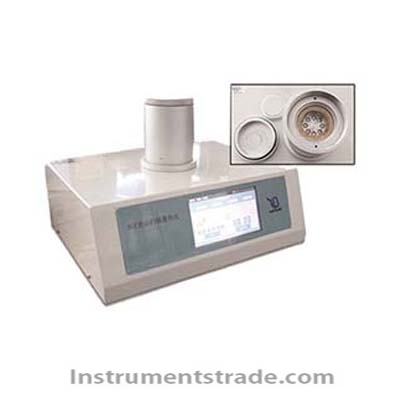

YND-BM4 multi-channel differential scanning calorimeter for Material change research

Product ID：WLcs018

Price: Please inquire PDF Format

Supply Ability:50SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberYND-BM4

Brand NameSHYINGNUO

Payment TermsTT，PAYPAL，Alibaba.com Pay

Introduction:
YND-BM4 multi-channel differential scanning calorimeter touch screen instrument, can do 4 samples in a single time;
Comply with, but not limited to, the following national standards: GB/T 19466.3-2009/ISO 11357-3:1999 Part 6: Determination of oxidation induction time (isothermal OIT) and oxidation induced temperature (dynamic OIT) in the oxidation induction period; GB/T 19466.2 - 2004/ISO 11357-2:1999 Part 2: Determination of glass transition temperature; GB/T 19466.3-2004/ISO 11357-3:1999 Part 3: Determination of melting and crystallization temperatures and enthalpy.
Features:
1. Industrial-grade wide-screen touch structure, showing rich information, including set temperature, sample temperature, oxygen flow, nitrogen flow, differential heat signal, various switch states, and flow return to zero.
2. The furnace body is heated by electric heating wire, and the furnace body is cooled by electronic semiconductor refrigeration, which has compact structure and small volume. No need for external cooling source and cumbersome refrigeration system, heating and cooling rate
Fast, the minimum cooling temperature can reach -40 degrees.
3, USB communication interface, strong versatility, reliable signal without interruption, support self-recovery connection function.
4. The structure of the furnace body is compact, and the temperature rise and fall rate can be adjusted arbitrarily.
5. The installation process is improved, and all mechanical fixing methods are adopted to completely avoid the contamination of the internal heat of the furnace body by the differential heat signal.
6, dual temperature probe to ensure high repeatability of sample temperature measurement. A temperature probe is installed on the wall of the furnace for PID control of the temperature of the entire furnace, but due to the thermal inertia of the temperature,
There is a certain deviation in the temperature on the sample, and the deviation is different in spring, summer, autumn and winter. Therefore, the temperature is measured and temperature controlled by a single temperature probe, whether it is a differential heat signal or a temperature signal, the error is better than
Larger; the instrument has a temperature probe installed at the bottom of the sample to measure the true temperature of the sample, and we use our special temperature control technology to control the temperature of the furnace wall to make the sample temperature
The set temperature is reached.
7. The digital gas mass flow meter automatically switches the two-way gas flow, and the switching speed is fast and the stabilization time is short.
8. Standard samples are standard to facilitate the customer to adjust the constant temperature coefficient.
9. The software adapts to the computer screen of each resolution, and the software automatically adjusts the display mode of each curve according to the size of the computer screen. Support notebook, desktop, support WIN XP, WIN 7, WIN 8
WIN 10 all operating systems.
10. Support user self-programming program to realize full automation of measurement steps. The software provides dozens of instructions, and users can flexibly combine and save each instruction according to their own measurement steps. Complex operation
This is simplified into a one-button operation.
11. High-grade aluminum alloy instrument box with high-pressure elastic foam packaging, which can be carried and moved by customers.
12, new furnace structure design, support for simultaneous measurement of 4 samples
Technical Parameters:

temperature range	Room temperature - 500 degrees
Temperature accuracy	0.01 ° C (standard metal sample)
Heating rate	0.1-80 ° C / min
Temperature control method	Heating, constant temperature (fully controlled
DSC range	0-±500mw
DSC noise	0.001μw
DSC resolution	0.001μw
DSC accuracy	0.001μw
DSC sensitivity	0.001μw
output method	Computer and printer
Working power supply	AC220V 50HZ or custom
Atmosphere control gas	Nitrogen, oxygen (automatic control of the instrument)
Gas flow	0—200ml/min
gas pressure	0.2mpa
Gas flow accuracy	0.2ml/min
Optional equipment	Aluminum crucible diameter 6.6*3
Parameter standard	With standard samples (indium, tin, zinc), users can correct temperature and enthusiasm
Data interface	Standard USB interface
Display method	24bit color, 7 inch LED touch screen display

Introduction:
YND-BM4 multi-channel differential scanning calorimeter touch screen instrument, can do 4 samples in a single time;
Comply with, but not limited to, the following national standards: GB/T 19466.3-2009/ISO 11357-3:1999 Part 6: Determination of oxidation induction time (isothermal OIT) and oxidation induced temperature (dynamic OIT) in the oxidation induction period; GB/T 19466.2 - 2004/ISO 11357-2:1999 Part 2: Determination of glass transition temperature; GB/T 19466.3-2004/ISO 11357-3:1999 Part 3: Determination of melting and crystallization temperatures and enthalpy.
