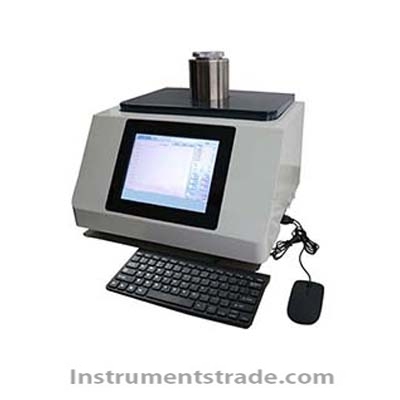

YND-B1 Differential Scanning Calorimeter

Product ID：WLcs020

Price: Please inquire PDF Format

Supply Ability:50SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberYND-B1

Brand NameSHYINGNUO

Payment TermsTT，PAYPAL，Alibaba.com Pay

Features:
1: support testing of multiple parameters such as as induction period, melting point, cold crystallization, solidification, glass transition temperature, specific heat capacity;
2: The new sensor sample holder, fully enclosed structure design, to prevent items from falling into the furnace body.
3: The instrument complies with the following national standards, but is not limited to the following national standards:
GB/T 19466.2–2004/ISO 11357-2: 1999 Part 2: Determination of glass transition temperature;
GB/T 19466.3–2004/ISO 11357-3: 1999 Part 3: Determination of melting and crystallization temperatures and enthalpy;
GB/T 19466.4–2016/ISO 11357-4: 1999 Part 4: Determination of specific heat capacity;
GB/T 19466.6-2009/ISO 11357-3: 1999 Part 6: Oxidation induction period Determination of sterilization induction time (isothermal OIT) and oxidation induced temperature (dynamic OIT).
4: Embedded 10.8-inch large industrial grade computer, no need to install a computer, integrated equipment, display information, including set temperature, sample temperature, oxygen flow, nitrogen flow, differential heat
Signal, various switch states, flow to zero.
5: Four USB ports are equipped as standard on the right side of the instrument, which is convenient for users to connect external devices such as mouse, keyboard, printer, U disk, etc., which is convenient for users.
6: The internal USB communication interface of the instrument is stronger and more versatile than the original instrument. The communication is reliable and uninterrupted, and the self-recovery connection function is supported.
7: The digital gas mass flow meter automatically switches the two-way atmosphere flow, and the switching speed is fast and the stabilization time is short.
8: Standard samples are standard, which is convenient for customers to correct the constant temperature coefficient.
9: Pre-installed software, no computer adaptability problems, reduce the problems caused by the replacement of the use of the computer, the installation of the driver error.
10: Support user self-programming program to realize full automation of measurement steps. The software provides dozens of instructions, and the user can flexibly combine the instructions according to their own measurement steps and save them. Complex operations are simplified into one-button operations .
Technical Parameter

temperature range	Room temperature - 500 ° C
Temperature resolution	0.01 ° C (standard metal sample)
Heating rate	0.1-80 ° C / min
Temperature control method	Heating, constant temperature (fully controlled)
DSC range	0-±500mw
DSC noise	0.001μw
DSC resolution	0.001μw
DSC accuracy	0.001μw
DSC sensitivity	0.001μw
output method	Instrument internal storage or printer
Working power supply	AC220V 50HZ or custom
Atmosphere control gas	Nitrogen, oxygen (automatic control of the instrument)
Gas flow	0—200ml/min
gas pressure	0.2mpa
Gas flow accuracy	0.2ml/min
Optional equipment	Aluminum pot diameter 6.7*3
Parameter standard	With standard samples (indium, tin, zinc), users can correct temperature and enthusiasm
Data interface	Standard USB interface
storage	30GB (system memory 2GB DDR3)
Display method	10.8 inch industrial computer (WIN 10)

Features:
1: support testing of multiple parameters such as as induction period, melting point, cold crystallization, solidification, glass transition temperature, specific heat capacity;
2: The new sensor sample holder, fully enclosed structure design, to prevent items from falling into the furnace body.
3: The instrument complies with the following national standards, but is not limited to the following national standards:
GB/T 19466.2–2004/ISO 11357-2: 1999 Part 2: Determination of glass transition temperature;
GB/T 19466.3–2004/ISO 11357-3: 1999 Part 3: Determination of melting and crystallization temperatures and enthalpy;
GB/T 19466.4–2016/ISO 11357-4: 1999 Part 4: Determination of specific heat capacity;
GB/T 19466.6-2009/ISO 11357-3: 1999 Part 6: Oxidation induction period Determination of sterilization induction time (isothermal OIT) and oxidation induced temperature (dynamic OIT).
4: Embedded 10.8-inch large industrial grade computer, no need to install a computer, integrated equipment, display information, including set temperature, sample temperature, oxygen flow, nitrogen flow, differential heat
Signal, various switch states, flow to zero.
5: Four USB ports are equipped as standard on the right side of the instrument, which is convenient for users to connect external devices such as mouse, keyboard, printer, U disk, etc., which is convenient for users.
6: The internal USB communication interface of the instrument is stronger and more versatile than the original instrument. The communication is reliable and uninterrupted, and the self-recovery connection function is supported.
7: The digital gas mass flow meter automatically switches the two-way atmosphere flow, and the switching speed is fast and the stabilization time is short.
8: Standard samples are standard, which is convenient for customers to correct the constant temperature coefficient.
9: Pre-installed software, no computer adaptability problems, reduce the problems caused by the replacement of the use of the computer, the installation of the driver error.
10: Support user self-programming program to realize full automation of measurement steps. The software provides dozens of instructions, and the user can flexibly combine the instructions according to their own measurement steps and save them. Complex operations are simplified into one-button operations .
