Sales YN-DSC-HP (high pressure) differential scanning calorimeter，Manufacturer

Position: Home > > Physical property test > Thermal analysis instrument > Differential scanning calorimeter > YN-DSC-HP (high pressure) differential scanning calorimeter for Materials Analysis

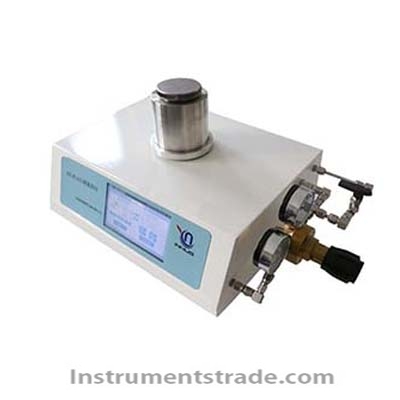

YN-DSC-HP (high pressure) differential scanning calorimeter for Materials Analysis

Product ID：WLcs017

Price: Please inquire PDF Format

Supply Ability:50SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberYN-DSC-HP

Brand NameSHYINGNUO

Payment TermsTT，PAYPAL，Alibaba.com Pay

Features:
1, 7-inch industrial-grade wide-screen touch structure, display information is rich, including set temperature, sample temperature, oxygen flow, nitrogen flow, differential heat signal, various switch states.
2, all stainless steel sealed furnace body, to ensure that the airflow flows smoothly through the furnace body, thus obtaining a highly repeatable baseline.
3, convenient various air pressure and safe pressure relief protection.
4, compact external pressure reading instrument in the furnace.
5, USB3.0 communication mode, fast and massive data transmission, strong versatility, reliable communication without interruption, support self-recovery connection function.
6. One-piece fixed furnace structure, no need to lift the furnace body up and down, easy to load, and the temperature rise and fall rate can be adjusted arbitrarily.
7. The detachable sample support rod is flexible and replaceable to meet different needs of users and facilitate cleaning and maintenance after sample contamination.
8. Dual temperature probe ensures high repeatability of sample temperature measurement. A temperature probe is installed on the furnace wall for PID control of the temperature of the entire furnace, but due to temperature
    Thermal inertia, there is a certain deviation in the temperature transmitted to the sample, and the deviation is different in spring, summer, autumn and winter. Therefore, using a single temperature probe for temperature measurement and temperature control, whether it is a differential heat signal or
    Temperature signal, the error is relatively large; the instrument has a temperature probe installed at the bottom of the sample to measure the true temperature of the sample, and we use our special temperature control.
    Technology to control the furnace wall temperature to bring the sample temperature to the set temperature.
9. The gas mass flow meter automatically switches the two-way gas flow, and the switching speed is fast and the stabilization time is short.
10. Standard samples are standard to facilitate the customer to adjust the constant temperature coefficient.
11. The software adapts to the computer screen of each resolution, and the software automatically adjusts the display mode of each curve according to the size of the computer screen. Support notebook, desktop, support WIN XP, WIN 7, WIN 8,
     WIN10 and other operating systems.
12. The user self-programming program realizes full automation of the measurement steps. The software provides dozens of instructions, and users can flexibly combine and save each instruction according to their own measurement steps. complicated
     The operation is simplified into a one-button operation.
13. High-grade aluminum alloy instrument box with high-pressure elastic foam packaging, which can be carried and moved by customers.
Technical Parameters

Pressure range	0~5MPa
Temperature resolution	0.01 ° C
Temperature fluctuation	±0.1°C
Heating rate	0.1~80°C/min optional
Temperature control method	PID temperature adjustment
DSC range	0～±500mW
DSC resolution	0.001μW
DSC sensitivity	0.001μW
Atmosphere control	Nitrogen and oxygen two-way gas control
Working power supply	AC 220V 50Hz
temperature range	Room temperature ~500°C/800°C/1150°C/1450°C/1550°C (depending on model)
