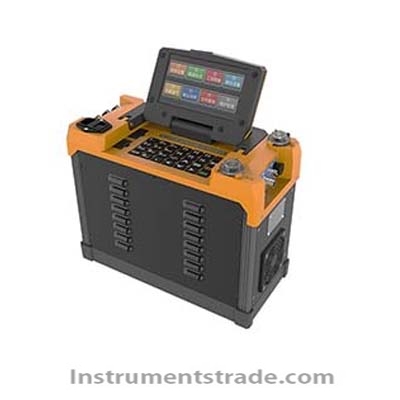

YMZR-3260E Automatic Smoke and Flue Gas Analyzer

Product ID：HQWRCO2CO034

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberYMZR-3260E

Brand NameQINGDAOZHONGRUI

Payment TermsTT，PAYPAL，Alibaba.com Pay

YMZR-3260E Automatic Smoke and Flue Gas Analyzer

Product Introduction
The YMZR-3260E Automatic Smoke and Flue Gas Analyzer is a portable instrument designed for comprehensive monitoring of particulate matter and gaseous pollutants from stationary emission sources. It uses isokinetic sampling and filter weighing to determine particulate mass concentration, while integrating differential optical absorption spectroscopy (DOAS), non-dispersive infrared (NDIR), and electrochemical technologies to analyze multiple flue gas components.
When used with the ZR-D09QT multiparameter direct-reading particulate sampling probe, the system can also measure exhaust particulate concentrations on-site using the beta-ray absorption method. Additional measurements include flue gas velocity, temperature, humidity, duct pressure, and exhaust flow rate.
The YMZR-3260E is suitable for industrial stack emission testing, environmental compliance monitoring, and evaluating dust removal and desulfurization efficiency.

Performance Features
1. Multi-technology gas analysis: Combines DOAS, NDIR, and electrochemical detection for comprehensive flue gas analysis.
2. High-accuracy DOAS measurement: Measures SO₂, NO, and NO₂ with reduced interference from water vapor, making it suitable for high-humidity, low-sulfur applications.
3. Automatic dual-range switching: Automatically adjusts the measurement range according to gas concentration.
4. High-flow sampling system: Features a low-noise, high-load sampling pump with a maximum flow rate of 110 L/min.
5. Multiple particulate measurement methods: Supports filter-based gravimetric measurement and beta-ray absorption-based direct reading when used with the compatible ZR-D09QT probe.
6. Advanced optical system: Uses an imported holographic grating spectrometer matched to the absorption bands of key gases.
7. Fast-start UV source: The pulsed xenon lamp has a warm-up time of less than 10 minutes.
8. Integrated water management: Includes liquid-water protection, automatic drainage, and gas pretreatment for moisture and dust removal.
9.Temperature-controlled infrared module: Helps maintain stable NDIR measurement conditions.
10. User-friendly interface: Features a 7-inch high-brightness color display with touchscreen and keypad operation.
11. Bluetooth connectivity: Supports Bluetooth communication and an optional external high-speed Bluetooth printer.
12. Reliable field operation: Includes airtightness checks, fault self-diagnostics, alarms, and power-failure data retention.
13. Enhanced sampling protection: Integrated filtration, water trapping, and gas-path buffering help protect the sampling pump and improve measurement reliability.
14. Flexible power supply: Supports AC power and compatible external power supplies, with a rechargeable built-in battery.

Working Principle
The YMZR-3260E uses several analytical methods to measure particulate matter and gaseous pollutants.
• Particulate matter measurement: Isokinetic sampling collects particulate matter on a filter or filter cartridge, followed by gravimetric weighing to determine mass concentration. With the compatible ZR-D09QT probe, beta-ray absorption enables direct-reading particulate concentration measurement.
• DOAS gas analysis: Differential optical absorption spectroscopy identifies and quantifies gases such as SO₂, NO, and NO₂ by analyzing their characteristic ultraviolet absorption spectra.
• NDIR gas analysis: Non-dispersive infrared absorption measures selected infrared-active gas components.
• Electrochemical analysis: Electrochemical sensors measure compatible gas components according to their individual sensor responses.
• Flue gas parameter measurement: Supporting sensors measure gas velocity, temperature, humidity, duct pressure, and exhaust flow rate.
The integrated sampling, analysis, and data-management functions provide a comprehensive solution for stationary-source emission testing.

Technical Parameters

Parameter	Specification
Model	YMZR-3260E
Instrument Type	Portable automatic smoke and flue gas analyzer
Sampling Flow Rate	0–110 L/min
Gas Components	SO₂, NO, NO₂, NOx, CO, CO₂, H₂S, O₂
Gas Analysis Technologies	DOAS, NDIR, electrochemical
Particulate Measurement	Filter gravimetry; beta-ray absorption with compatible ZR-D09QT probe
Additional Measurements	Flue gas velocity, temperature, humidity, duct pressure, exhaust flow rate
Operating Power Supply	AC (220 ± 22) V, (50 ± 1) Hz
Main Unit Dimensions	370 × 170 × 340 mm (L × W × H)
Main Unit Weight	Approximately 12 kg, including battery
Instrument Noise	< 65 dB(A)
Power Consumption	< 600 W
Standard Battery	25.9 V, 6 Ah
Battery Runtime	≥ 3 hours at 20 L/min and −8 kPa load; ≥ 2 hours at 30 L/min and −8 kPa load
Display	7-inch high-brightness color screen
Communication	Bluetooth
Data Protection	Automatic data saving and power-failure recovery support

Note: Gas-specific measurement ranges, detection limits, accuracy, and repeatability should be confirmed in the manufacturer's detailed specification sheet.

Application Scenarios
• Industrial stack emission monitoring: Measures particulate matter and gaseous pollutants from stationary combustion and production sources.
• Environmental compliance testing: Supports field measurements for industrial air pollution assessment and emissions reporting.
• Boiler and furnace testing: Evaluates flue gas composition and operating conditions.
• Dust removal efficiency assessment: Compares particulate concentrations before and after dust-control equipment.
• Desulfurization efficiency evaluation: Supports SO₂ monitoring around flue gas desulfurization systems.
• Industrial pollution control: Helps assess emission characteristics and the performance of pollution-control equipment.
•Environmental testing laboratories: Provides portable measurement capabilities for field sampling and technical investigations.

YMZR-3260E vs. Conventional Flue Gas Analyzers

Comparison Item	YMZR-3260E	Conventional Single-Function Analyzer
Measurement Scope	Particulate matter, multiple gases, and flue gas parameters	Often focused on selected gases or individual parameters
Gas Analysis	Integrated DOAS, NDIR, and electrochemical technologies	Depends on the analyzer's sensor configuration
Particulate Testing	Filter weighing; optional compatible beta-ray direct-reading method	May require a separate particulate sampler
Sampling Capacity	Maximum flow rate of 110 L/min	Varies by model
Water Management	Integrated liquid-water protection and automatic drainage	Depends on system configuration
Field Operation	Portable design, battery operation, and color display	Varies by model
Data Protection	Power-failure data retention and recovery support	Depends on model and software
Typical Applications	Comprehensive stationary-source emission testing	Specific gas analysis or individual emission parameters

Frequently Asked Questions
1. What is the YMZR-3260E Automatic Smoke and Flue Gas Analyzer used for?
It is used to measure particulate matter, flue gas pollutants, and physical flue gas parameters at stationary emission sources, supporting environmental monitoring and pollution-control evaluation.
2. Which gases can the YMZR-3260E measure?
The listed gas components include SO₂, NO, NO₂, NOx, CO, CO₂, H₂S, and O₂. The measurement range and detection performance depend on the instrument's configuration.
3. What measurement technologies does the instrument use?
It integrates differential optical absorption spectroscopy (DOAS), non-dispersive infrared (NDIR) analysis, and electrochemical detection.
4. How does the instrument measure particulate matter?
It uses isokinetic sampling and filter or filter-cartridge weighing to determine particulate mass concentration. With the compatible ZR-D09QT probe, it can also perform beta-ray absorption-based direct-reading measurements.
5. Is the YMZR-3260E suitable for high-humidity flue gas?
Yes. Its DOAS technology is designed to reduce water-vapor interference, while the integrated water protection, automatic drainage, and gas pretreatment system help manage moisture during sampling.
6. What is the maximum sampling flow rate?
The specified sampling flow rate is 0–110 L/min, supported by a high-load, low-noise sampling pump.
7. Can the analyzer operate without a mains power supply?
Yes. The standard 25.9 V, 6 Ah battery supports portable operation. Runtime is at least 3 hours at 20 L/min under a −8 kPa load, or at least 2 hours at 30 L/min under the same load conditions.
8. Does the instrument support data printing and wireless communication?
Yes. It supports Bluetooth communication and connection to an external high-speed Bluetooth printer.
9. Which standards does the YMZR-3260E support?
Its integrated UV flue gas analysis module and high-flow particulate sampling pump are specified to support HJ 1131-2020, HJ 1132-2020, and HJ 836-2017. Users should verify the applicable method, configuration, and regulatory requirements before testing.
